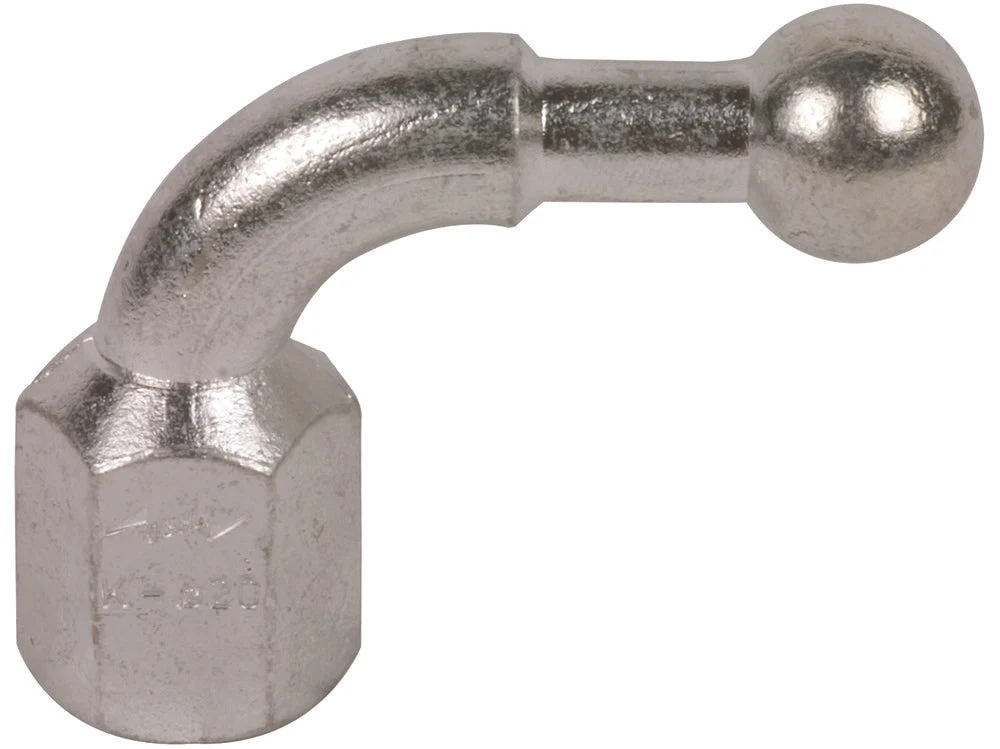

This is a 90° angled fixed ball point with a female thread, specifically designed for line and earth connection, compatible with the EN/IEC 61230 (DIN VDE 0683-100) regulation at both the conductor and earth-termination systems. Notable for its high mechanical strength due to its female thread which is not cut, it is suitable for fixing cable lugs or connecting busbars in line with DIN 43673-1. It can handle a maximum short circuit current of 26.5kA, features a 25mm connection point for earth and short-circuit functionalities, and a maximum wire cross-section for copper of 95mm² with a 25mm ball point diameter.
Specifications
Max. short circuit current (kA) : 26.5
Construction type : Angled
Mounting method : With internal thread
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : No
