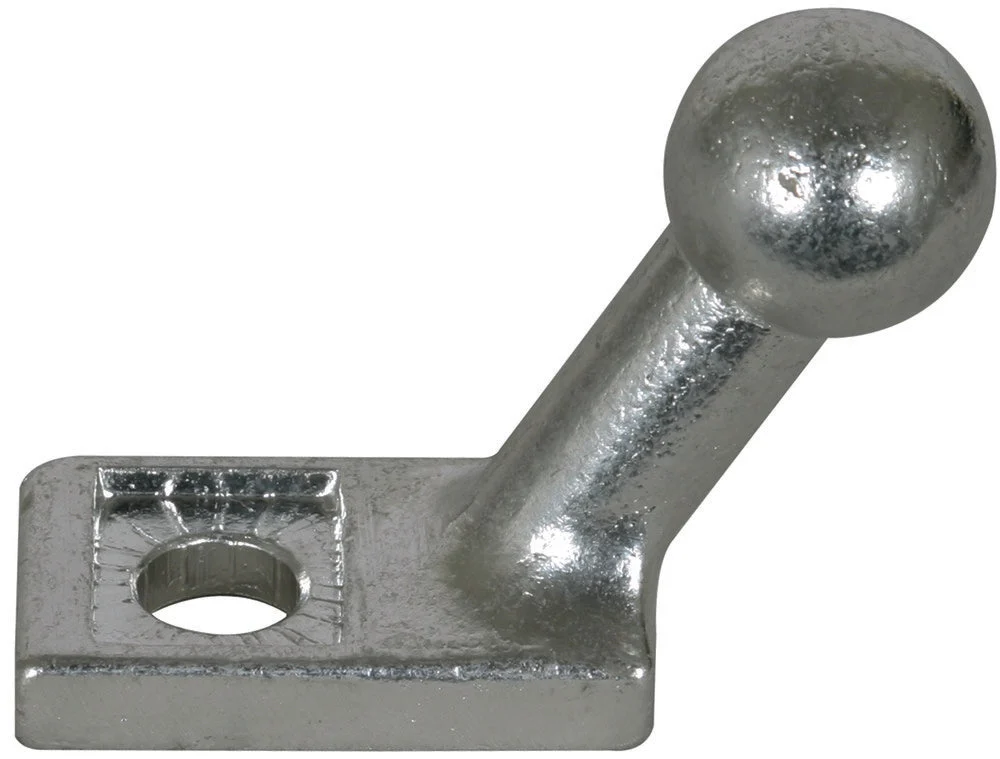

This item is a fixed ball point with a terminal lug, presented in an angled form. It is suitable for line and earth connection point per EN/IEC 61230 (DIN VDE 0683-100) in the conductor and earth-termination system. With a high mechanical strength due to female thread (not cut), it is ideal for fixing cable lugs or connecting busbars following DIN 43673-1. It is designed to handle a maximum short circuit current of 14kA. The hardware features a lug connection of the earthing and short circuit secure point with a 20mm diameter, and it can accommodate a maximum wire cross section of copper up to 50mm².
Specifications
Max. short circuit current (kA) : 14
Construction type : Angled
Mounting method : With connector lug
Connection of the earthing and short circuit device : Fixed ball point 20 mm
Max. wire cross section copper (mm²) : 50
Diameter fixed point (mm) : 20
Suitable for round conductors : No
