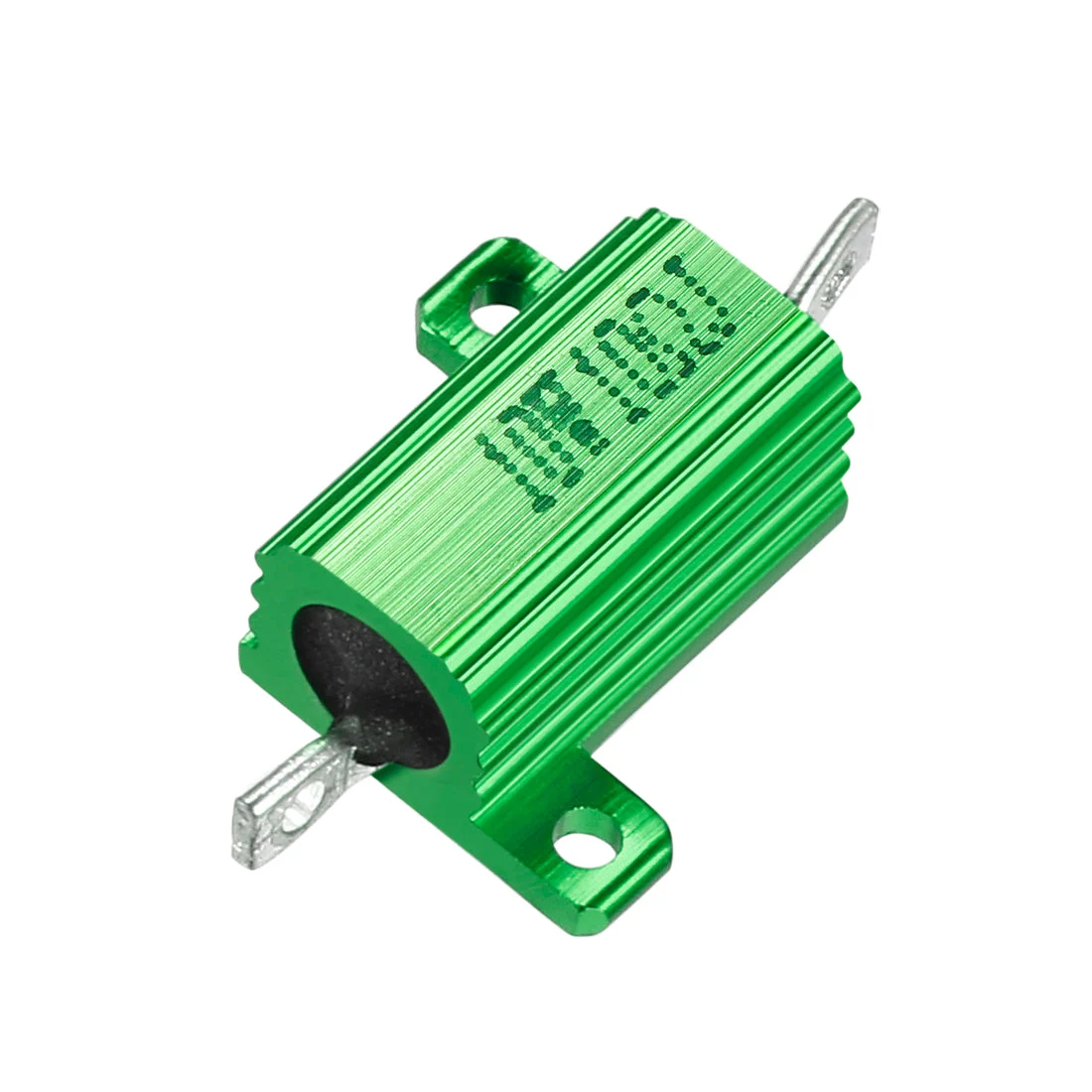

About this item
- 10 Wattage and 10 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.
- Aluminum Housed. An insulated cover on the wires would keep the heat out. Hence, the cooling job was achieved by aluminum case.
- This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.
- Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)
- Reliable. Problems like the flush LED would have a great solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.
Main Body Length: 1.9 cm/ 0.75 inches
Power: 10 Wattage
Rated Resistance: 10 R
Tolerances: 5%(J)
Connection Type: Rod terminals with hole
Rod Length: 7.7mm/0.3 inches
Screw Hole: 2.5mm(Fit #2 or M2.3 nuts)
Distance between screw hole: 14mm
Weight: 6g/0.15 Oz
Materials: Nickel alloys Wire Wound Resistor with Aluminum Case
Color: Green
Package Content:
1 x 10W10R Aluminum Housed Resistor
Reliable. Problems like the flush LED would have a great solution, or you can use it in any AC DC circuits, power supply, frequency converter, inverter, motor speed control, drivers, etc.
