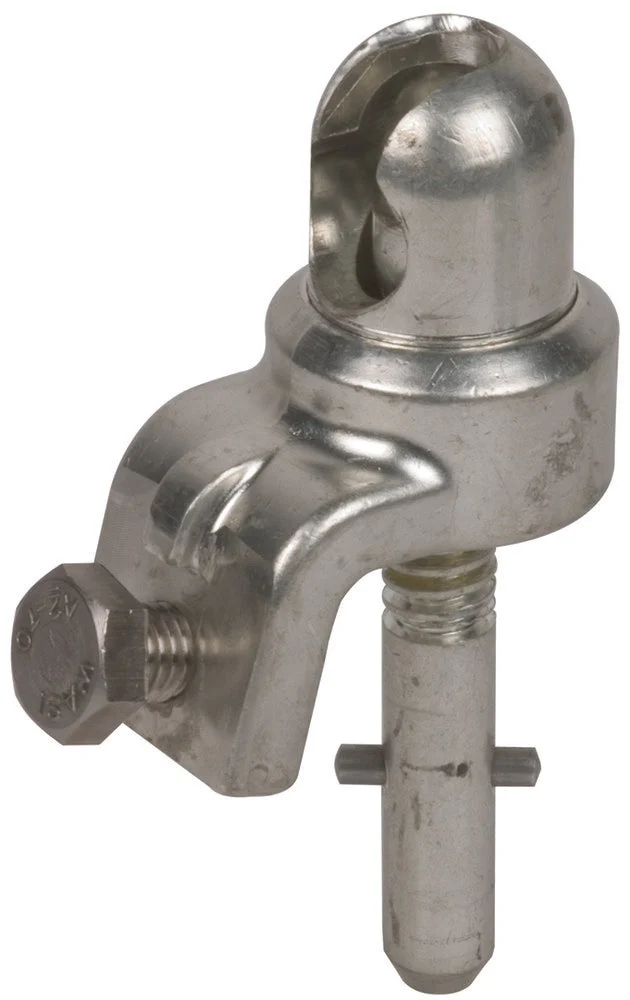

This is an adjustable ball head cap with a hexagon shaft designed for use as a phase or earth connecting element. Following EN/IEC 61230 (DIN VDE 0683-100) standards, it is suitable for fixed ball points and can be attached to earthing and short-circuiting devices. Additionally, it comes with a PK1 anti-rotation element. The connecting component can withstand a maximum short-circuit current of 42kA and is suitable for wire cross sections between 16 – 150mm². The attachment method involves a ball-fixed point of 25mm, ensuring stability while also providing a rotation prevention feature. Further, it allows securing the operation rod spindle with a transverse pin.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
