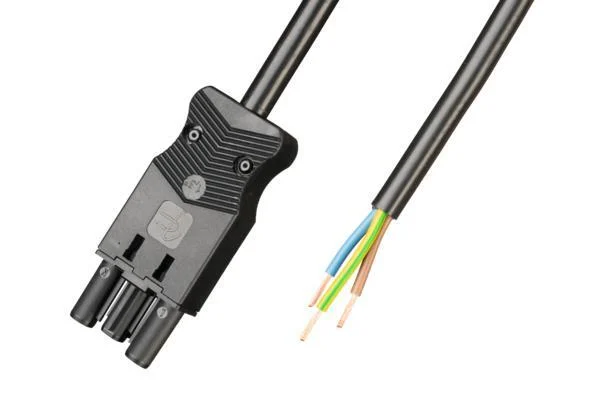

This AC 166 G series connection cord from Adels is a 3-pole connection cord equipped with a female mating plug and a free cable end. The black H05VV-F cord has a nominal conductor cross-section of 1.5mm². The total length of the connecting cord is 2 meters. Furthermore, the fire classification, according to EN 13501-6, of the Adels AC 166 G connection cord is Eca.
Specifications
Rated voltage (V) : 500
Rated current (A) : 16
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Device connection cable
Type side 1 : Bus
Type side 2 : Free conductor end
Conductor end treatment : Ultrasonic compressed wire ends
Total length (mm) : 2000
Mechanical coding : No
Color coding/contact insert : Black
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 8 mm to 8 mm
Dismantle length (mm) : 39
Strip length (mm) : 9
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 1.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 110
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 70
Halogen free : No
Fire load (kWh) : 0.27
Surface treatment contacts : Other
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
