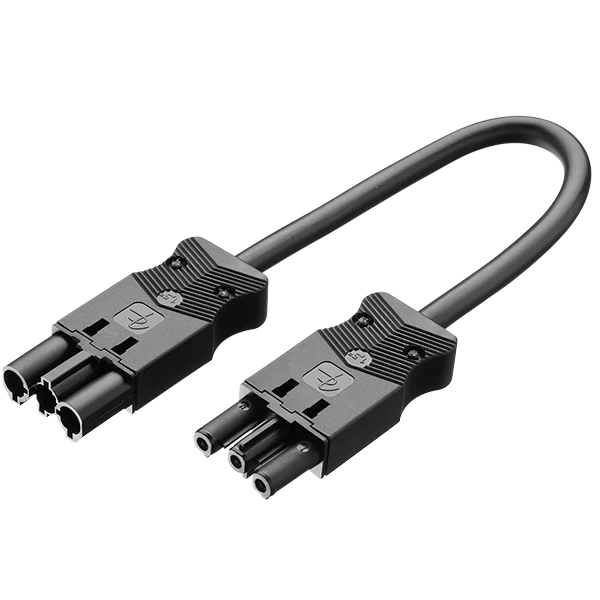

Adels AC166 Patch Cord Adjustable Building Installation – 1804634

Adels AC166 patch cable inst.bare buildinginstall., design side 1 plug, design side 2 mating plug (female), type made-up cable connection cable, total length 1000mm, sheath black, nominal conductor cross-section 2.5mm², coding/contact insert black, pole marking L. N. PE, 3 poles.

Specifications

Rated voltage (V) : 500
Rated current (A) : 20
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Plug
Type side 2 : Bus
Total length (mm) : 1000
Mechanical coding : No
Color coding/contact insert : Black
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 10 mm to 10 mm
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 2.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 110
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 70
Halogen free : No
Fire load (kWh) : 0.43
Surface treatment contacts : Other
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
