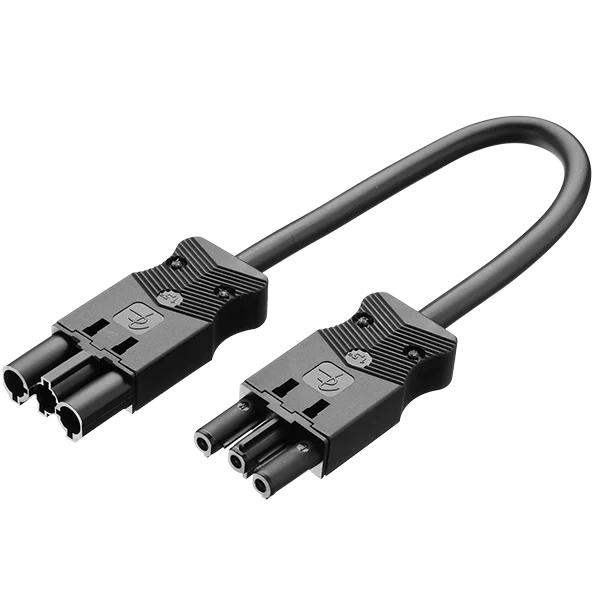

This coupler cable from the AC 166 G series from Adels is a 3-pole interconnect cable equipped with a male plug and a female mating plug. The black H05VV-F cord has a nominal conductor cross-section of 1.5mm². The total length of the coupling cord is 1 meter. Furthermore, the fire rating, according to EN 13501-6, of the Adels AC 166 G coupling cable is Eca.
Specifications
Rated voltage (V) : 500
Rated current (A) : 16
Number of poles : 3
Degree of protection (IP) : IP20
Type of finished cable : Connecting cable
Type side 1 : Plug
Type side 2 : Bus
Total length (mm) : 1000
Mechanical coding : No
Color coding/contact insert : Black
Color housing : Black
Cable type : H05VV-F
Cable diameter (mm) : 8 mm to 8 mm
Color outer sheath : Black
Pole codification : L, N, PE
Nominal cross section conductor (mm²) : 1.5
Locking mechanism : Separate
Insulating piece permanent temperature-resistant (°C) : 110
Cable permanent temperature-resistant to (°C) : 70
Max. operating temperature at conductor (°C) : 70
Halogen free : No
Fire load (kWh) : 0.27
Surface treatment contacts : Other
Rated surge voltage (kV) : 4
Reaction-to-fire class according to EN 13501-6 : Eca
