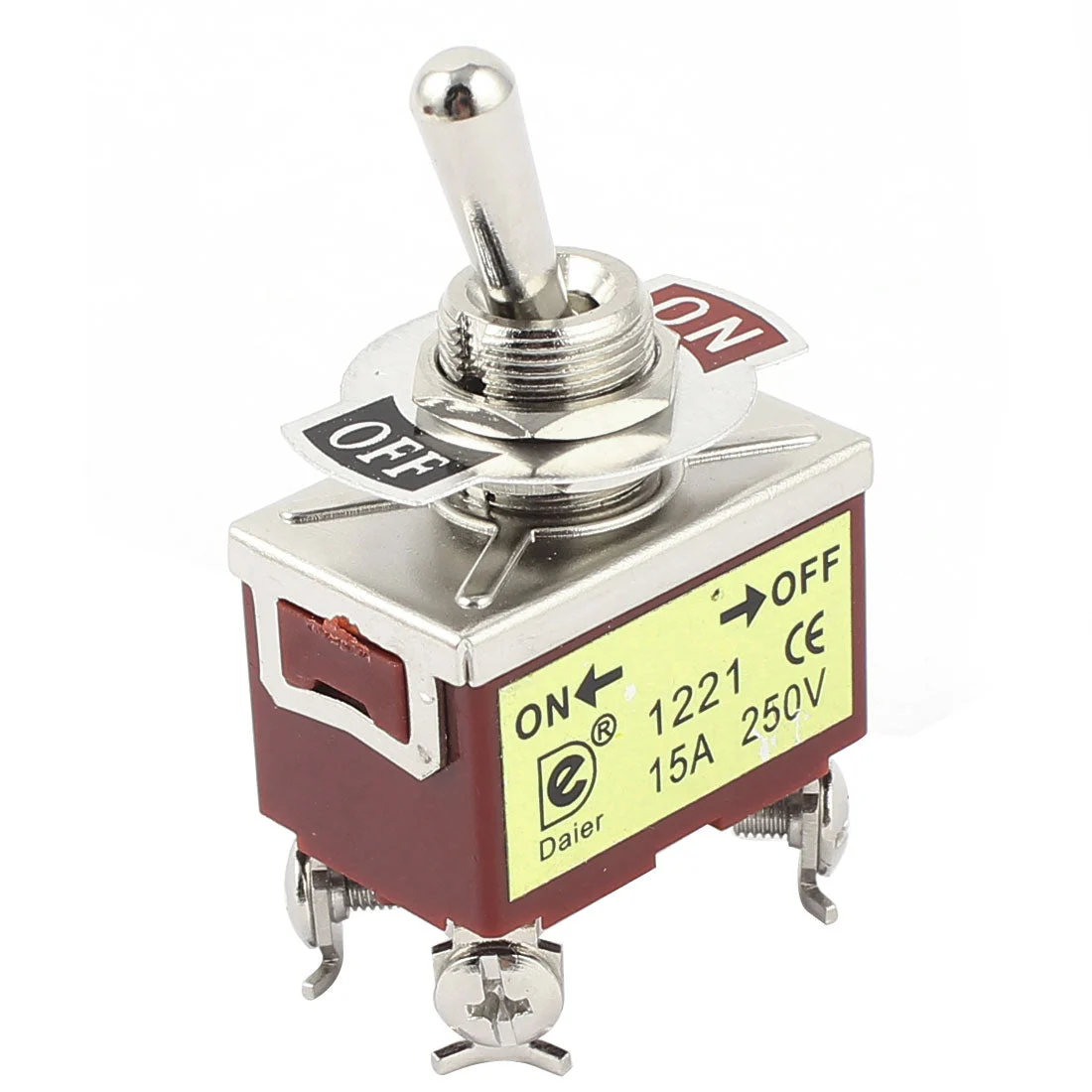

AC 250V 15A DPST ON/OFF 2 Positions 4 Screw Terminals 12mm Thread Panel Mount Latching Toggle Switch

About this item

• Type: DPST (Latching); Position: 2(ON/OFF); Mounting Thread Diameter: 12mm/0.47″
• Main Body Size: 3 x 2 x 2 cm / 1.2″ x 0.8″ x 0.8″ (L*W*H); Overall Height: 60mm/2.4″; Product Name: Toggle Switch
• Country of Manufacture: CHINA; Material: Metal, Plastic
• Net Weight: 33g; Package Content: 1 x Toggle Switch
• Brand: Harfington; Main Color: Brown, Silver Tone

Please note:

The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types:

Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125V
Max Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125V
Max Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W
Max Power Rating for DC Lamp: DC 30V 3.5A
Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
