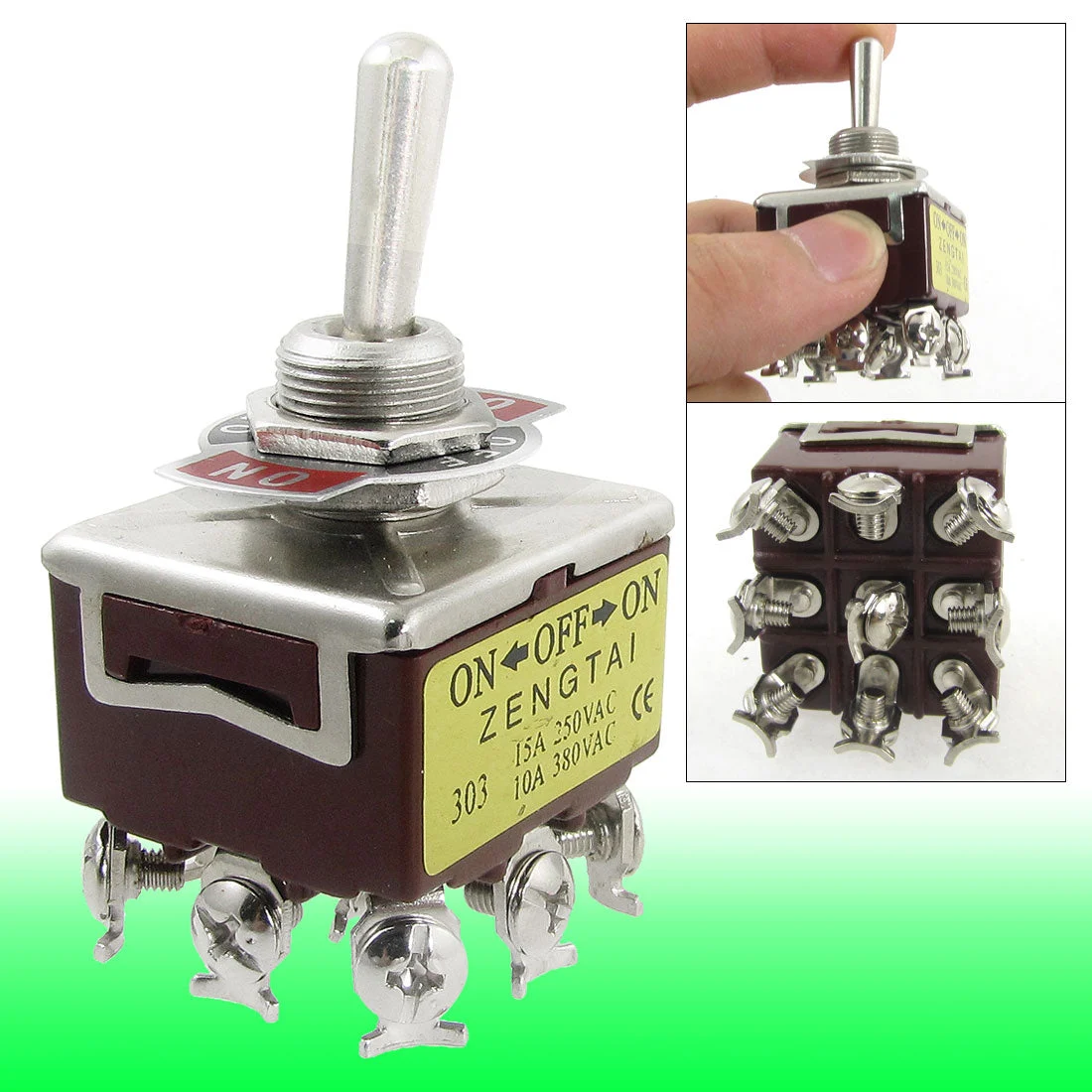

AC 250V 15A 380V 10A ON/OFF/ON 3 Position 3PDT 9 Screw Terminals Toggle Switch

About this item

• Product Name : Toggle Switch;Position : 3 Positions(ON/OFF/ON)
• Type : 3PDT(Latching);Mounting Hole Diameter : 11.8mm / 0.46″
• Body Size(Approx.) : 33 x 28 x 20mm / 1.3″ x 1.1″ x 0.8″(L*W*T);Total Height : 59mm / 2.3″
• Material : Metal, Resin;Weight : 47g
• Package Content : 1 x Toggle Switch

Please note:
The 250V/15A rating in the title is only for purely resistive load, please pay attention to the specifications below for max ratings of other load types: Max Power Rating for AC Resisitive load:AC 15A 250V / AC 16A 125VMax Power Rating for DC Resisitive load:DC 0.5A 250V / DC 0.9A 125VMax Power Rating for AC Lamp: AC 125V 300W / AC 250V 600W Max Power Rating for DC Lamp: DC 30V 3.5A Max Power Rating for AC Motor(Single Phase): AC 250V 400W / AC 125V 300W
