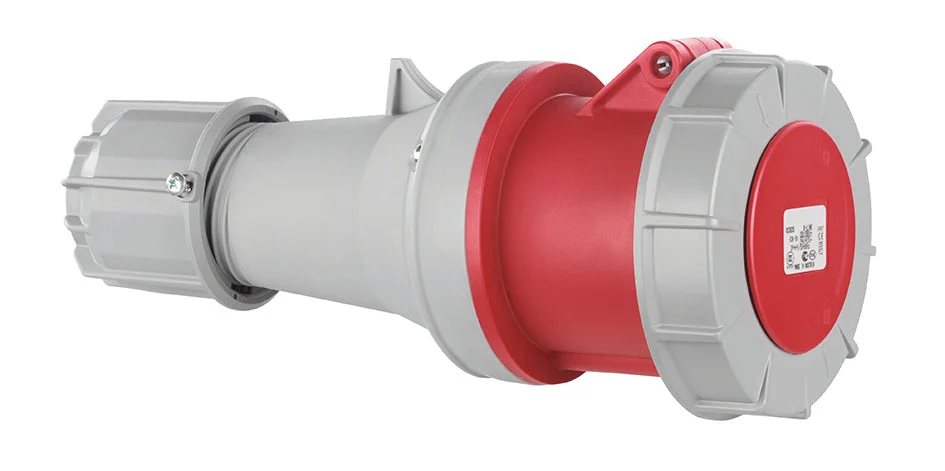

Abl Connectivity cee connector plug, plastic, degree of protection (IP) IP67, feature color red, voltage according to EN 60309-2 400 V (50+60 Hz) red, connection technology screw terminal, IEC current rating 125A, 5 poles, insertion direction straight, cable entry gland, RAL number 3000, hour rating 6h.
Specifications
IEC-amperage (A) : 125
Number of poles : 5
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3000
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Military model : No
