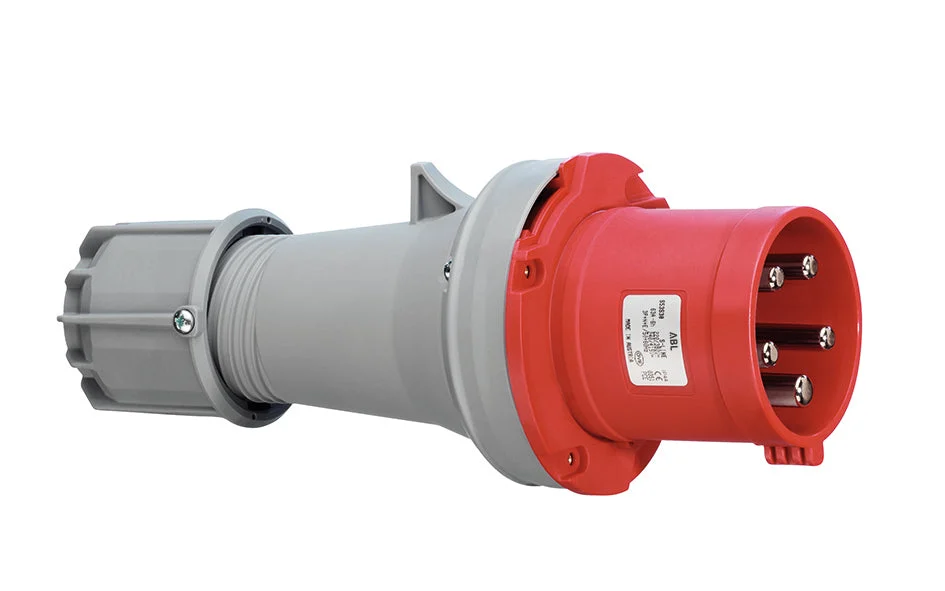

Abl Connectivity cee-contact plug, plastic, protection rating (IP) IP44, voltage according to EN 60309-2 400 V (50+60 Hz) red, characteristic color red, 5 poles, IEC current rating 63A, connection technology screw terminal, insertion direction straight, cable entry gland, RAL number 3000, hour rating 6h.
Specifications
IEC-amperage (A) : 63
Number of poles : 5
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3000
Phase inverter : No
Degree of protection (IP) : IP44
Connection system : Screwed terminal
Cable entry : Gland nut
Angle of plug : Straight
Material : Plastic
Military model : No
