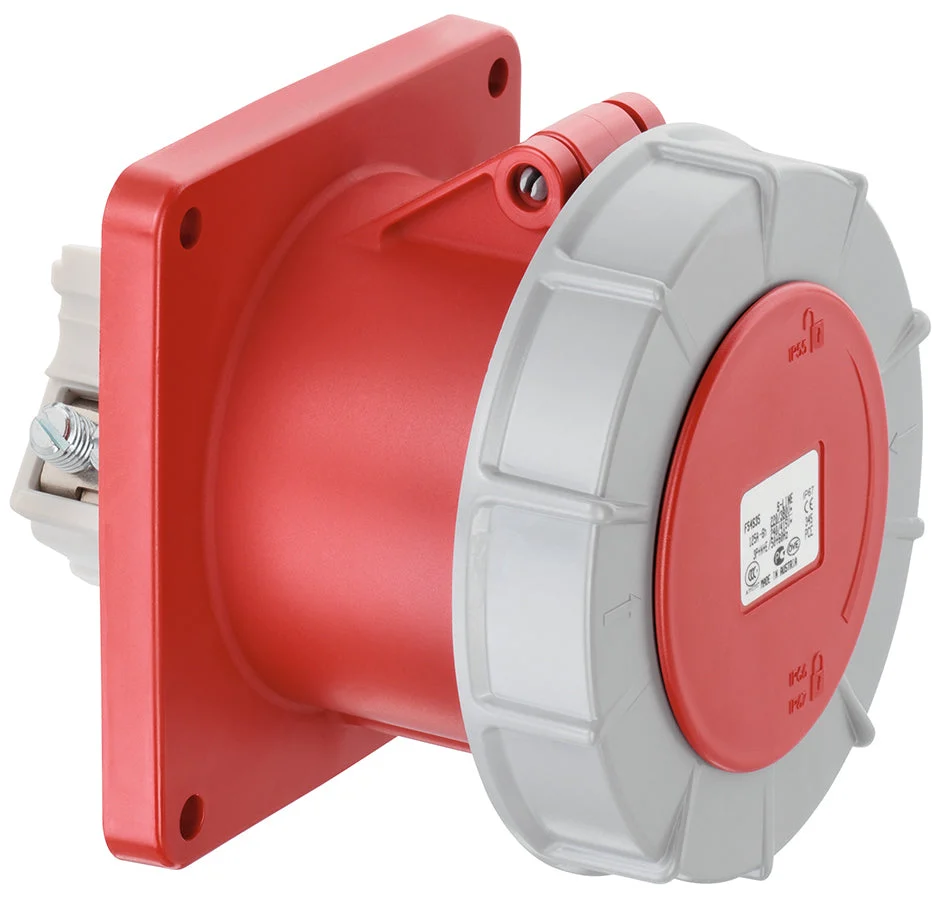

The Abl Connectivity CEE socket outlet, designed for mounting, is made of plastic, with an IEC current strength of 125A and a voltage according to EN 60309-2 of 400-440 V (50+60 Hz) in red. The nominal voltage ranges from 380 – 415V with a nominal frequency of 50 – 60Hz. It features 4 poles and has a clock position of 6 hours, easily distinguishable by its red color corresponding to the RAL 3000 number. Additionally, it boasts a protective degree of IP67. Similar to the CEE socket, the CEE flush-mounting socket complies with VDE 0623, EN 60309 part 1/2, and IEC 60309 standards. It offers waterproof protection with an IP67 rating, has a nominal current of 125A, and features a 4-pole design with a nominal voltage of 400V AC. Distinguished by its 9-hour red color position, it is specifically designed for high-power applications, includes pilot contact, and is outfitted with screw terminals.
Specifications
IEC-amperage (A) : 125
Voltage according to EN 60309-2 : 400-440 V (50+60 Hz) red
Rated voltage (V) : 380 V to 415 V
Rated frequency (Hz) : 50 Hz to 60 Hz
Number of poles : 4
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3000
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Material : Plastic
Military model : No
Flange size vertical (mm) : 120
Drill hole distance vertical (mm) : 100
Flange size horizontal (mm) : 120
Drill hole distance horizontal (mm) : 100
