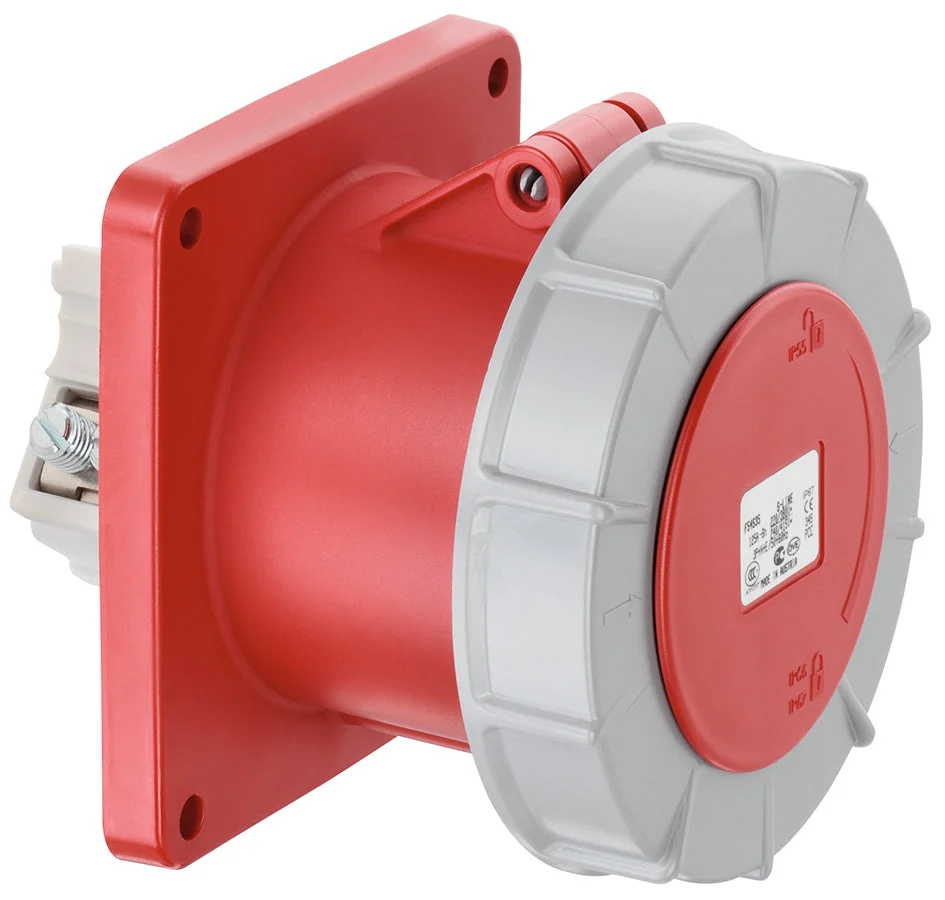

The item is a high-power CEE flange socket, compliant with VDE 0623, EN 60309 parts 1/2 and IEC 60309 standards. It has a secure waterproof protection class, IP67. The socket supports a nominal current of 125 A, 5-pin design, and a nominal voltage of 400V AC with 9h in red. The flange socket is mounted externally with four attachment points and features a pilot contact and screw terminals. The IP67 rated ABL connectivity CEE socket is constructed from plastic, delivering an IEC current strength 125 A and voltage according to EN 60309-2 400-440 V (50+60 Hz) colored red. Its nominal voltage ranges from 346 to 415V, with a measurement frequency of 50 -60Hz. It has 5 poles with a 6-hour position, and the red color is set by the RAL 3000 number.
Specifications
IEC-amperage (A) : 125
Voltage according to EN 60309-2 : 400-440 V (50+60 Hz) red
Rated voltage (V) : 346 V to 415 V
Rated frequency (Hz) : 50 Hz to 60 Hz
Number of poles : 5
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3000
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Material : Plastic
Military model : No
Flange size vertical (mm) : 120
Drill hole distance vertical (mm) : 100
Flange size horizontal (mm) : 120
Drill hole distance horizontal (mm) : 100
