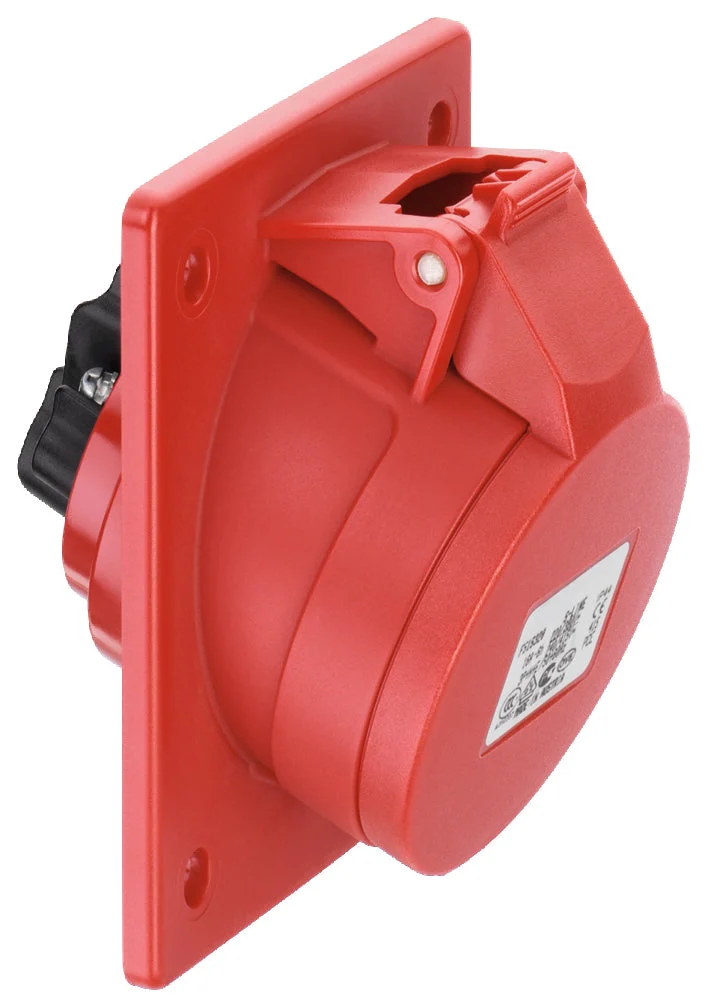

The Abl Connectivity CEE flange socket outlet is made of plastic and can be mounted. It operates at an IEC current strength of 16A and a nominal voltage of 200 – 250V, adhering to the voltage specifications of EN 60309-2 230 V (50+60 Hz). This three-pole outlet features a 20° angle, is protected against water spray with an IP44 degree of protection, and is characterized by a blue color, with a RAL number of 5017, and has a 6-hour position. It uses screw terminals and all flange outlets have non-nickel contacts. This outlet is compliant with VDE 0623, EN 60309 part 1/2, and IEC 60309 standards. It is designed with four external mounting options. The nominal frequency ranges from 50 – 60Hz.
Specifications
IEC-amperage (A) : 16
Voltage according to EN 60309-2 : 230 V (50+60 Hz) blue
Rated voltage (V) : 200 V to 250 V
Rated frequency (Hz) : 50 Hz to 60 Hz
Number of poles : 3
Clock hour position (h) : 6
Identification color : Blue
RAL-number : 5017
Degree of protection (IP) : IP44
Connection system : Screwed terminal
Angle of plug : Straight
Material : Plastic
Military model : No
Flange size vertical (mm) : 85
Drill hole distance vertical (mm) : 65
Flange size horizontal (mm) : 70
Drill hole distance horizontal (mm) : 50
