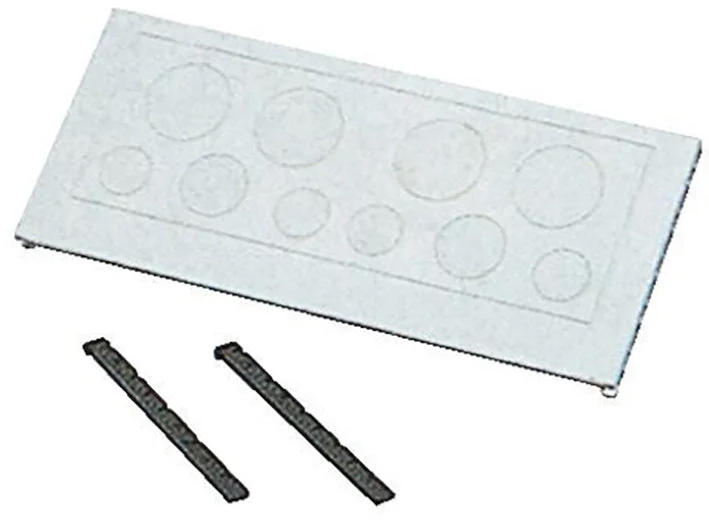

The item is an ABB VMS end plate, specifically a 440 1XM40/M32 16XM25/M20 model. The end plate serves as an input component for an enclosure or a console. The model delineates the size and configuration of the conduits or cable entries that it can accommodate. It is designed to handle one M40/M32 conduit and up to 16 M25/M20 conduits, highlighting its utility in managing multiple wiring connections consecutively.
Specifications
Model : Cable screw gland
Type : Straight
Width (mm) : 440
Height (mm) : 440
Depth (mm) : 89
Material : Plastic
Surface protection : Untreated
Degree of protection (NEMA) : 4
Pre-stamping : Yes
Number of connector holes : 17
Thread type : Metric
Suitable for nominal thread metric/PG : 20 to 40
