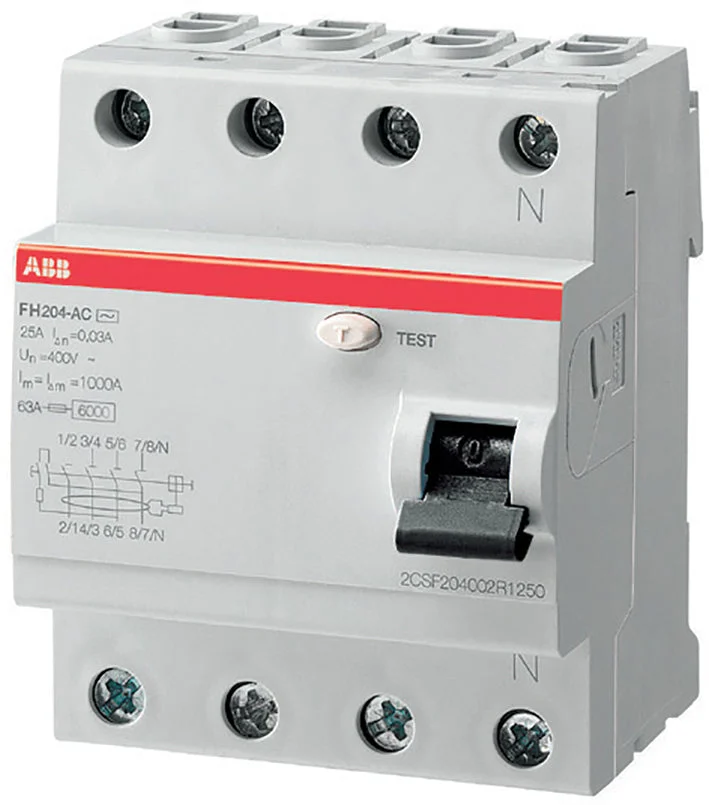

The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
Specifications
Number of poles : 4
Rated voltage (V) : 400
Rated current (A) : 40
Rated fault current (A) : 0.03
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 1
Surge current capacity (kA) : 0.25
With interlocking device : Yes
Frequency : 50 Hz
Additional equipment possible : No
Degree of protection (IP) : IP2X
Width in number of modular spacings : 4
Built-in depth (mm) : 69
Ambient temperature during operating (°C) : -5 °C to 40 °C
Connectable conductor cross section multi-wired (mm²) : 10 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 25 mm² to 25 mm²
