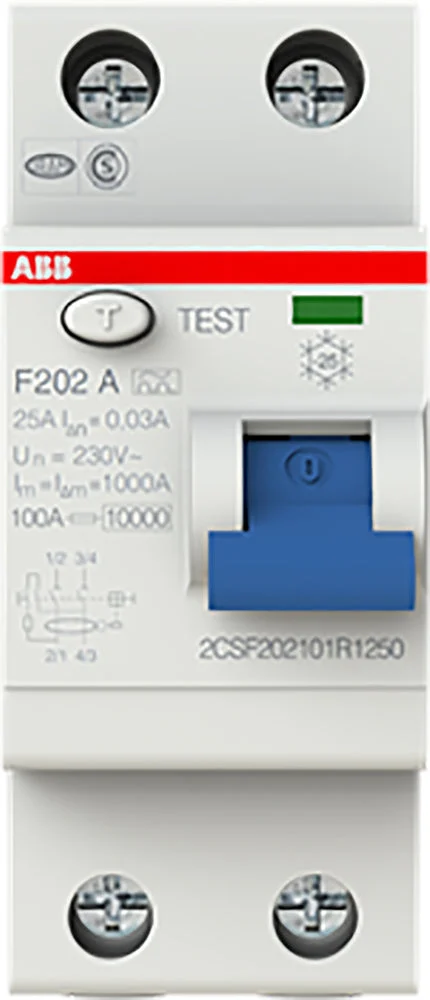

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.
Specifications
Number of poles : 2
Rated voltage (V) : 230
Rated current (A) : 25
Rated fault current (A) : 0.03
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Mounting method : DIN rail
Leakage current type : A
Selective protection : No
Short-time delayed tripping : No
Short-circuit breaking capacity (Icw) (kA) : 1
Surge current capacity (kA) : 6
Voltage-type : AC
With interlocking device : Yes
Frequency : Other
Additional equipment possible : Yes
Degree of protection (IP) : IP20
Width in number of modular spacings : 2
Built-in depth (mm) : 69
Ambient temperature during operating (°C) : -25 °C to 55 °C
Pollution degree : 2
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 25 mm² to 25 mm²
Explosion-proof : No
