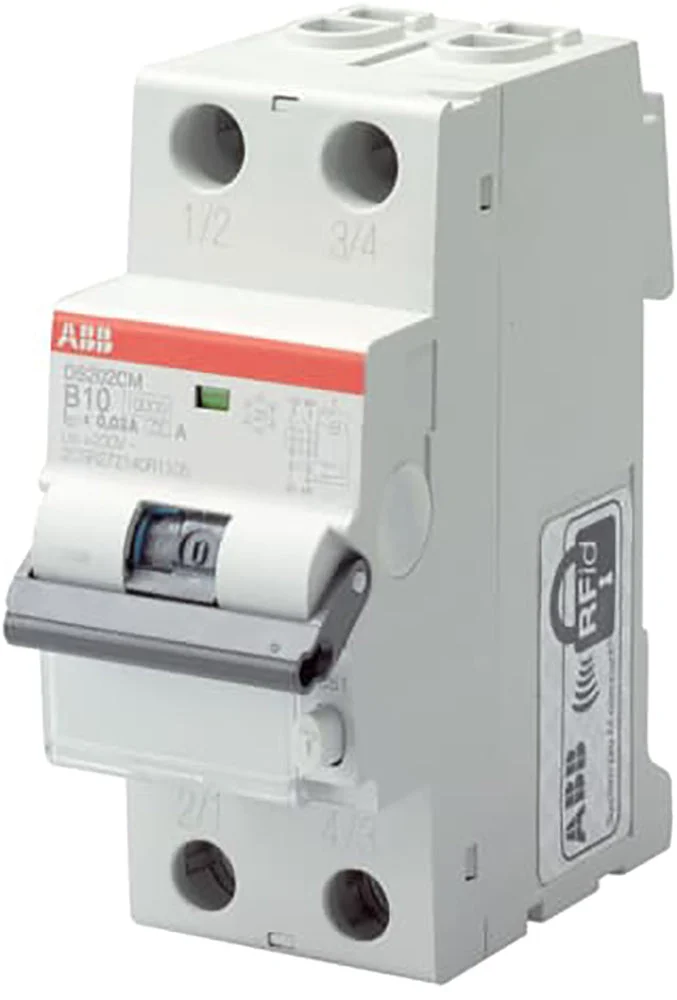

The DS202C series RCBO is a 2P in two-modules device for the protection of end user single-phase circuits against overload and short-circuit currents. Protection against the effects of sinusoidal alternating and direct pulsating earth fault currents. Protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA).
Specifications
Number of poles (total) : 2
Number of protected poles : 2
Rated voltage (V) : 230
Rated current (A) : 6
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 10
Voltage-type : AC
Frequency : 50/60 Hz
Release characteristic : B
Concurrently switching neutral conductor : No
Over voltage category : 3
Pollution degree : 2
Width in number of modular spacings : 2
Built-in depth (mm) : 73
Flush-mounted installation : No
Degree of protection (IP) : IP20
