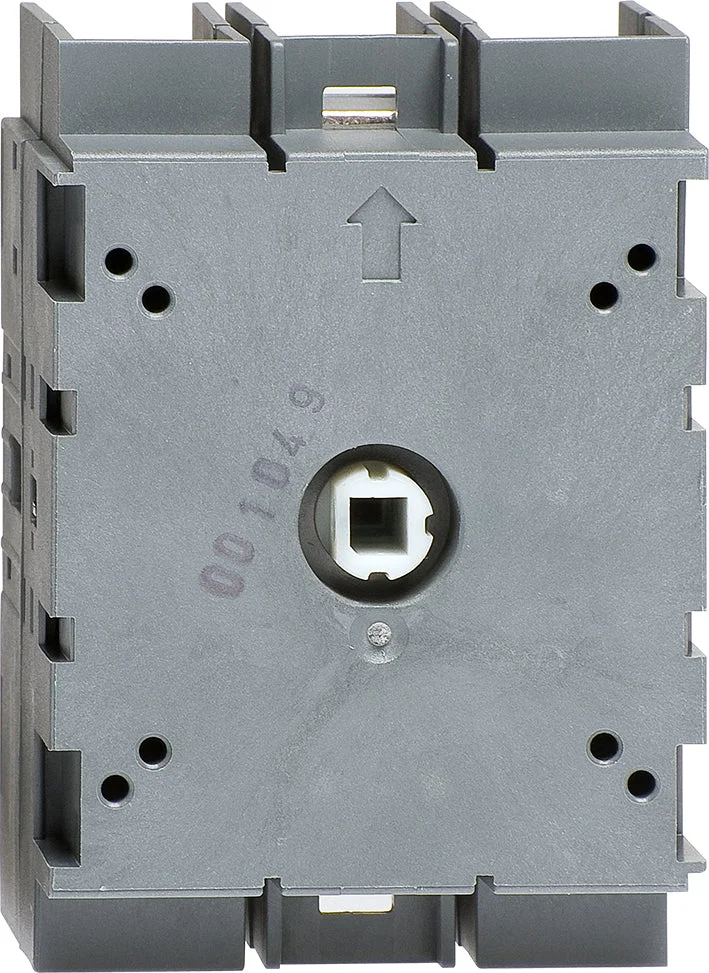

Abb SwitchLine OT switch-disconnector, main switch design, 1 switch, max. Rated operating voltage Ue at A 600V, operating voltage (measuring voltage) 600V, rated continuous current Iu 60A, rated continuous current, AC-23, 400 V 63A, rated continuous current, AC-21, 400 V 60A, rated power at AC-3, 400 V 37kW.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 600
Rated operating voltage (V) : 400 V to 400 V
Rated permanent current Iu (A) : 60
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 60
Rated operation power at AC-3, 400 V (kW) : 37
Rated short-time withstand current lcw (kA) : 2.5
Rated operation power at AC-23, 400 V (kW) : 37
Switching power at 400 V (kW) : 37
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Grey
Type of control element : Other
Interlockable : No
Type of electrical connection of main circuit : Cable clamp
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : 1
