ABB SwitchLine Disconnector – 1SCA105076R1001

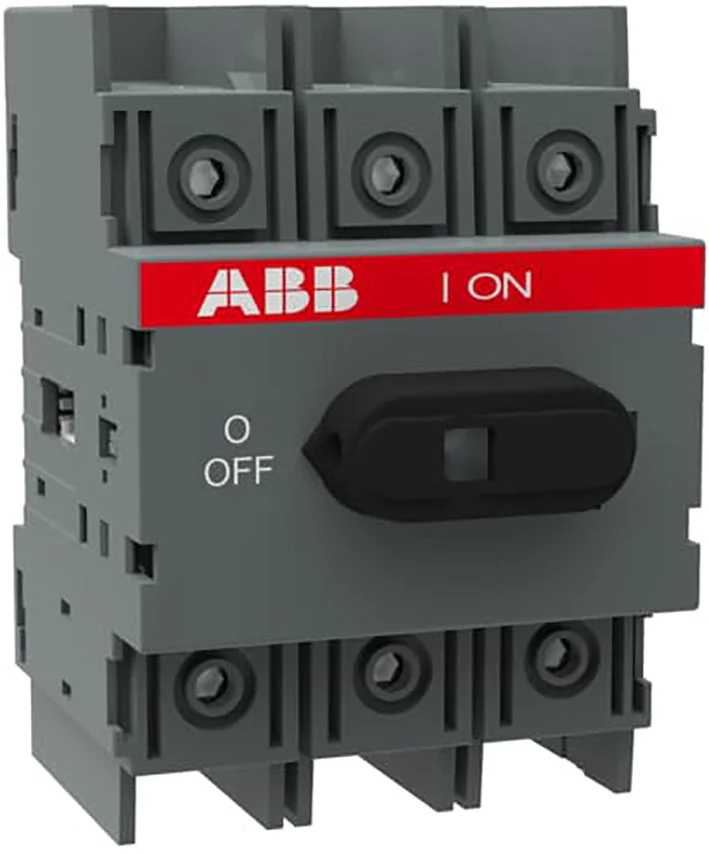

This 3-pole ABB main switch from the Switchline OT series can be used as both a main switch and switch-disconnector. The rated continuous current is 60A. Furthermore, the main switch has a rated output of 37kW at AC-23. This switch is operated by means of a rotary handle. The operating voltage (measurement voltage) is 380 to 440V.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 600
Rated operating voltage (V) : 750 V to 750 V
Rated permanent current Iu (A) : 60
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 60
Rated short-time withstand current lcw (kA) : 2.5
Rated operation power at AC-23, 400 V (kW) : 37
Switching power at 400 V (kW) : 37
Conditioned rated short-circuit current Iq (kA) : 50
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Color control element : Black
Type of control element : Toggle
Interlockable : No
Type of electrical connection of main circuit : Cable clamp
Degree of protection (IP), front side : IP20
Degree of protection (NEMA) : 1
