ABB Smissline-S Earth Leakage Circuit Breaker – 2CCL564110E0164

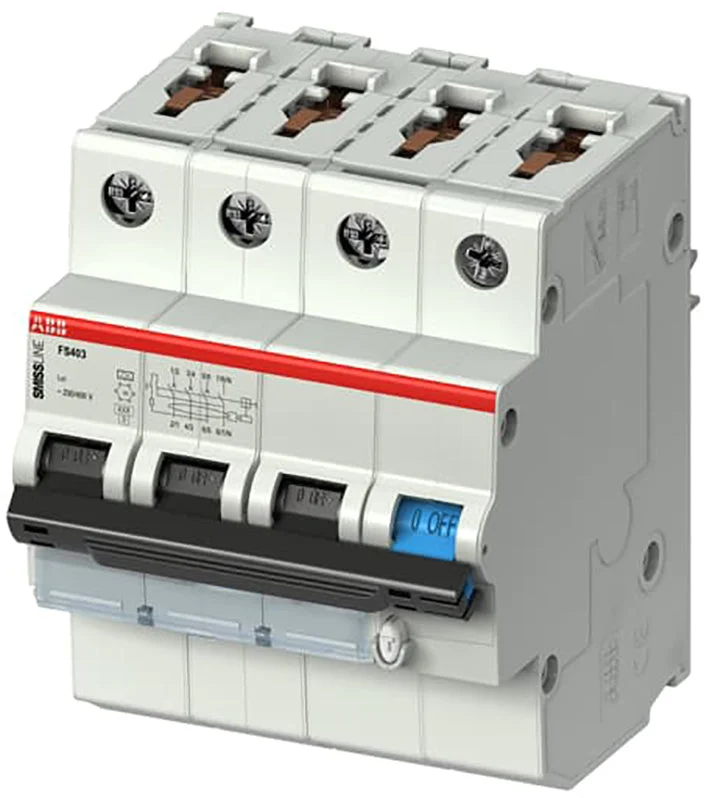

This earth leakage circuit breaker from ABB Haf’s Smissline series has a total of 4 poles, 3 of which are protected (3p+n), and a rated current of 16A. In addition, the earth leakage circuit breaker has a fault current of 30mA and tripping characteristic C. The ABB Smissline earth leakage circuit breaker can be attached with a simple click using the unique plug-in technology. Thanks to its possible vertical assembly, ABB Smissline provides maximum flexibility for both new construction and existing buildings, as well as space, time and cost savings.

Specifications

Number of poles (total) : 4
Number of protected poles : 3
Rated voltage (V) : 400
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 10
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 10
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 75
Disconnection characteristic : Undelayed
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50/60 Hz
Release characteristic : C
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Over voltage category : 3
Pollution degree : 2
Ambient temperature during operating (°C) : -25 °C to 60 °C
Width in number of modular spacings : 4
Built-in depth (mm) : 73
Flush-mounted installation : No
Anti-nuisance tripping version : No
Degree of protection (IP) : IP40
Connectable conductor cross section solid-core (mm²) : 0 mm² to 35 mm²
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 35 mm²
