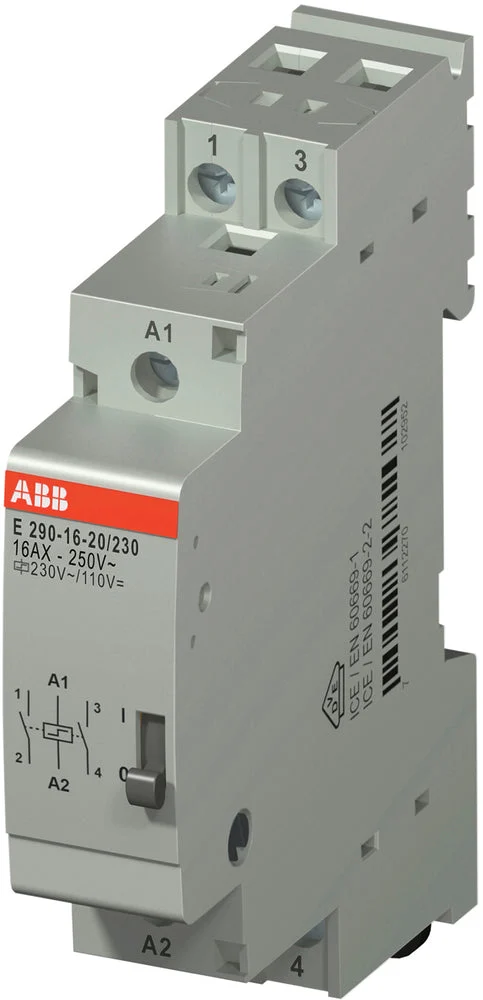

Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places.
Specifications
Function : Electronic switch
Mounting method : DIN rail
Width in number of modular spacings : 1
Built-in depth (mm) : 68
Number of contacts as normally open contact : 2
Number of contacts as normally closed contact : 0
Number of contacts as change-over contact : 0
Control voltage 1 (V) : 230 V to 230 V
Type of control voltage 1 : AC
Frequency control voltage 1 (Hz) : 50 Hz to 50 Hz
Control voltage 2 (V) : 110 V to 110 V
Type of control voltage 2 : DC
Frequency control voltage 2 (Hz) : 50 Hz to 50 Hz
Rated switch current (A) : 16
Supply voltage (V) : 207 V to 253 V
Voltage type of supply voltage : AC
Max. incandescent lamp load (W) : 3000
Max. load fluorescent lamp (VA) : 1800
Max. load fluorescent lamp (Duo circuit) (VA) : 2500
Max. load fluorescent lamp (parallel compensated) (VA) : 2500
Max. switching current (cos phi = 0.6) (A) : 16
Manual override : Yes
