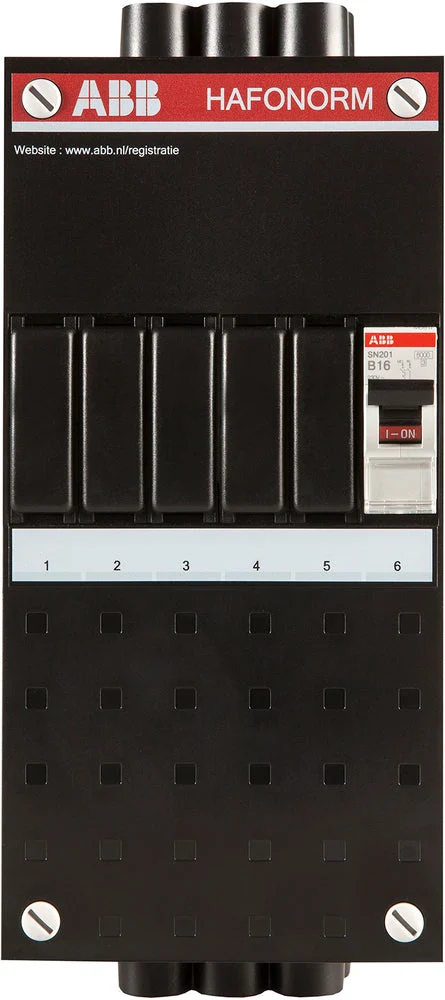

ABB Installation Cabinet – 1SPF006966F0115

Abb installation cabinet, (HxWxD) 254x110x90mm, protection installation/earth leakage circuit breaker, total number of groups 1, 1 phases, 1 light groups, degree of protection (IP) IP20, surface-mounted, add-on option, 1 direct group, width in module units 6, installation depth 0 – 45mm.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 1
Number of direct groups : 1
Number of light groups : 1
Number of groups behind earth leakage switch : 0
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 0
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 0
Protection incoming RCD : No
Protection high integrity : No
Protection split load : Yes
Protection dual RCD : Yes
Number of outgoing ways : 0
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP20
Height (mm) : 254
Width (mm) : 110
Width in number of modular spacings : 6
Depth (mm) : 90
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
