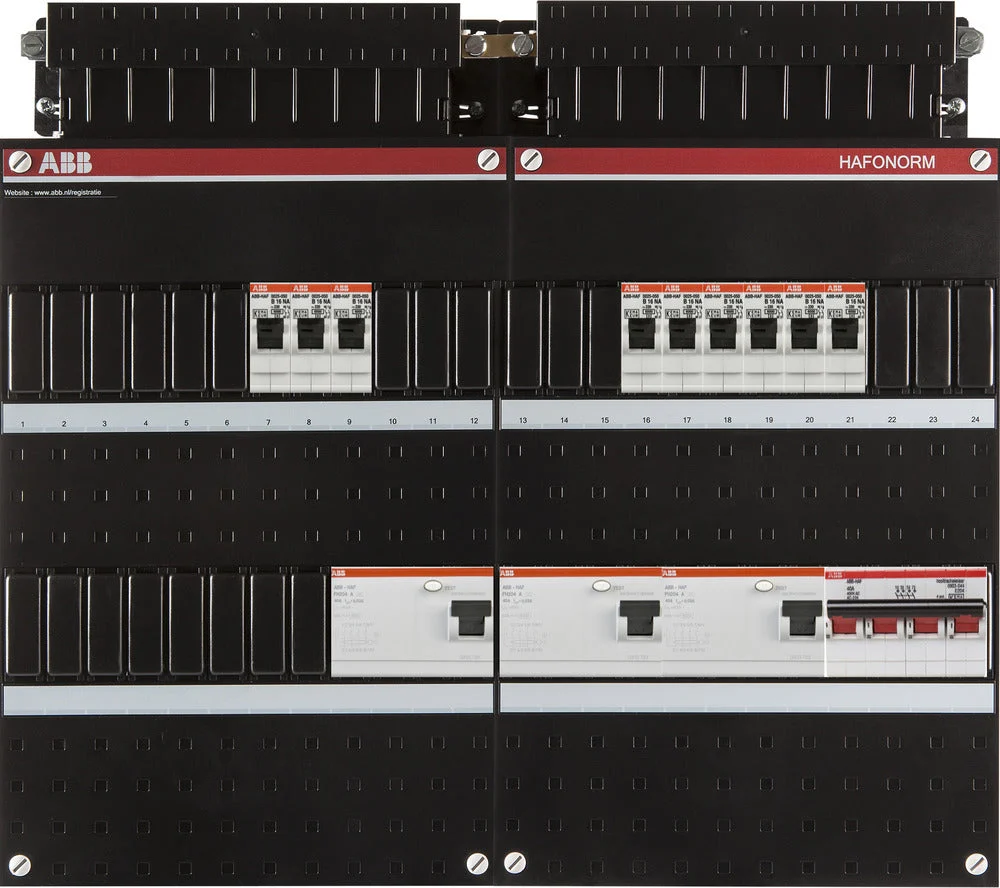

ABB Installation Cabinet – 1SPF006909F2699

Abb installation cabinet, (HxWxD) 390x440x90mm, protection installation/earth leakage circuit breaker, total number of groups 9, 3 phases, 9 light groups, 3 earth leakage switches 30mA, degree of protection (IP) IP20, 9 groups behind earth leakage circuit breaker, surface mounted, 4 poles main switch, main switch – nom. (measuring) current 40A.

Specifications

Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 9
Number of direct groups : 0
Number of light groups : 9
Number of groups behind earth leakage switch : 9
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 3
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Number of poles main switch : 4
Main switch rated current (A) : 40
Protection incoming RCD : No
Protection high integrity : No
Protection split load : Yes
Protection dual RCD : Yes
Number of outgoing ways : 0
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP20
Height (mm) : 390
Width (mm) : 440
Width in number of modular spacings : 48
Depth (mm) : 90
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
