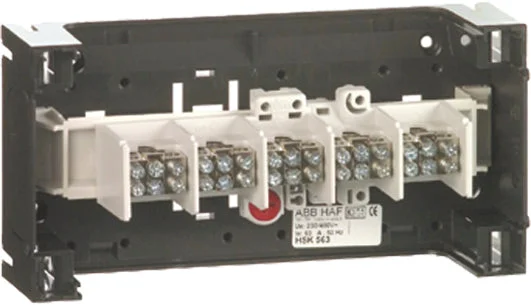

ABB HSK563 Terminal Box 63A 5-Units 2×16 1x25mm – 6963.120

This ABB Haf terminal box is made of black plastic and measures 110x220x75mm. It comes with 15 terminal clamps and has a maximum cable cross-section of 25mm². The box is designed for surface mounting and has potential for additional mounting. The entry type is unspecified. It is free of halogens and does not have surface protection, leaving it untreated. The protection degree is IP20 and it comes with a lid that has a screw fitting. The ABB Haf terminal box features exchangeable inserts on the sides and is open on the top and bottom.

ABB offers you a wide choice of different types of installation cabinets under the name Hafonorm. These distribution boards with an ampere up to 160 are suitable for residential construction and small utility. The ABB Haf Hafonorm distribution board is modularly constructed and based on the cabinet sizes 110, 165, 220 and 330 mm. The cabinets are easy to combine into a large system. For each application, Hafonorm has the ideal cabinet, which can be built quickly and easily to size. Besides distribution boards, Hafonorm consists of a whole series of components to tailor your distribution board entirely to your own wishes.

Specifications

Number of connection clamps : 15
Max. conductor cross section (mm²) : 25
Length (mm) : 110
Width (mm) : 220
Depth (mm) : 75
Mounting method : Surface mounted (plaster)
Extension possible : Yes
Type of inlet : Other
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Black
Degree of protection (IP) : IP20
With cover : Yes
Cover attachment : Screwed
With transparent cover : No
Sealable : Yes
Rated insulation voltage Ui (V) : 400
Circuit integrity : None
Impact strength : IK06
Explosion-tested version : No
For Ex-zone gas : None
