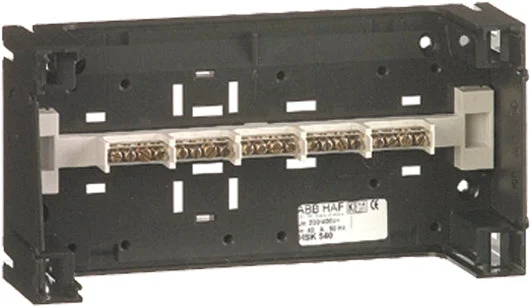

This is an ABB Hafonorm terminal box made from black plastic with dimensions 110x220x75mm. It features 20 connection terminals with a max wire diameter of 16mm² and an IP protection class of IP20. The box can be mounted and built upon, with a variable type of input. It is halogen-free with no surface protection (untreated), and includes a lid that’s securely attached by screws. The terminal box is designed with interchangeable inserts on the sides, and is open at both the top and bottom.
ABB offers you a wide range of installation cabinets under the name Hafonorm. These distribution boards with an Ampere up to 160 are suitable for residential construction and smaller utility. The ABB Haf Hafonorm distribution board is modularly built and based on the cabinet sizes 110, 165, 220, and 330 mm. The cabinets can be easily combined into a larger system. For every application, Hafonorm has the ideal cabinet, which can be quickly and easily customized. In addition to distribution boards, Hafonorm consists of a whole range of components to customize your distribution board exactly to your own wishes.
Specifications
Number of connection clamps : 20
Max. conductor cross section (mm²) : 16
Length (mm) : 110
Width (mm) : 220
Depth (mm) : 75
Mounting method : Surface mounted (plaster)
Extension possible : Yes
Type of inlet : Other
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Black
Degree of protection (IP) : IP20
With cover : Yes
Cover attachment : Screwed
With transparent cover : No
Sealable : Yes
Rated insulation voltage Ui (V) : 400
Circuit integrity : None
Impact strength : IK06
Explosion-tested version : No
For Ex-zone gas : None
