ABB Hafonorm Load Disconnector – 1SPK007900F0221

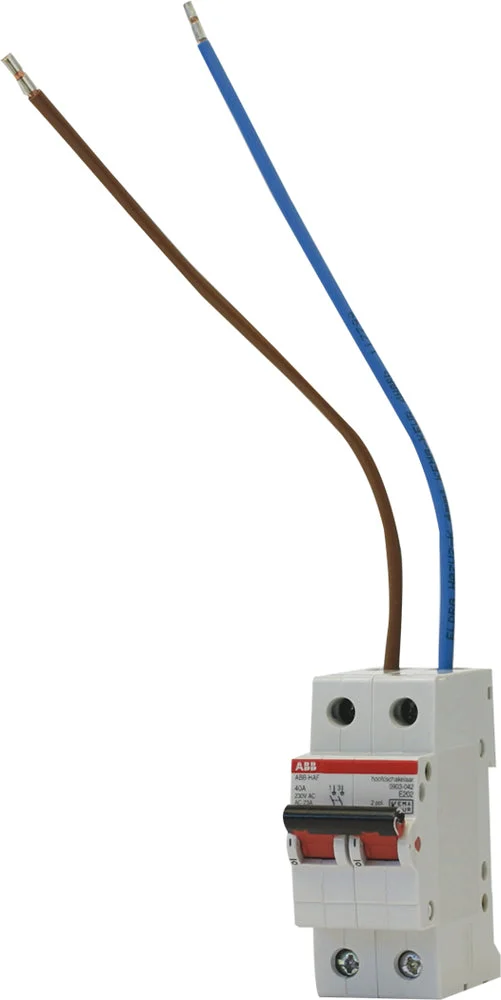

Toggle switch suitable for mounting on DIN rail with two flexible 4mm2 wires on the output side. Two-pole, 40A, 230V, 35 mm.

Specifications

Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 400
Rated operating voltage (V) : 230 V to 400 V
Rated permanent current Iu (A) : 40
Rated permanent current at AC-23, 400 V (A) : 40
Rated permanent current at AC-21, 400 V (A) : 40
Rated operation power at AC-3, 400 V (kW) : 9.2
Rated short-time withstand current lcw (kA) : 0.5
Rated operation power at AC-23, 400 V (kW) : 11
Switching power at 400 V (kW) : 11
Number of poles : 2
Number of auxiliary contacts as normally closed contact : 2
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : Yes
Color control element : Black
Type of control element : Rocker lever
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
