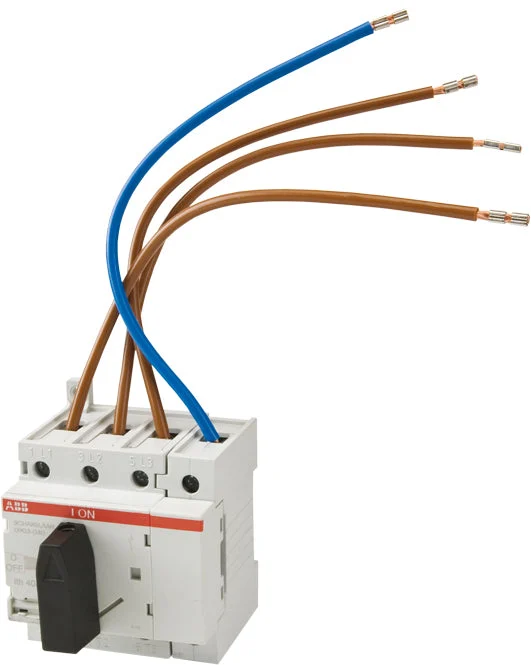

This 4-pole ABB switch-disconnector from the Hafonorm series can be used as a main switch. The rated continuous current is 63A. Furthermore, this switch-disconnector has a rated output at AC-3, 400V of 25kW. This Hafonorm switch-disconnector is lockable and further the switch is also successful for intermediate installation. The operating voltage (measurement voltage) is 230 to 400V. The switch-disconnector has a protection rating of IP20.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : No
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 400
Rated operating voltage (V) : 230 V to 400 V
Rated permanent current Iu (A) : 63
Rated permanent current at AC-23, 400 V (A) : 63
Rated permanent current at AC-21, 400 V (A) : 63
Rated operation power at AC-3, 400 V (kW) : 25
Rated short-time withstand current lcw (kA) : 1
Rated operation power at AC-23, 400 V (kW) : 22
Switching power at 400 V (kW) : 22
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 4
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : Yes
Color control element : Black
Type of control element : Rocker lever
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP20
