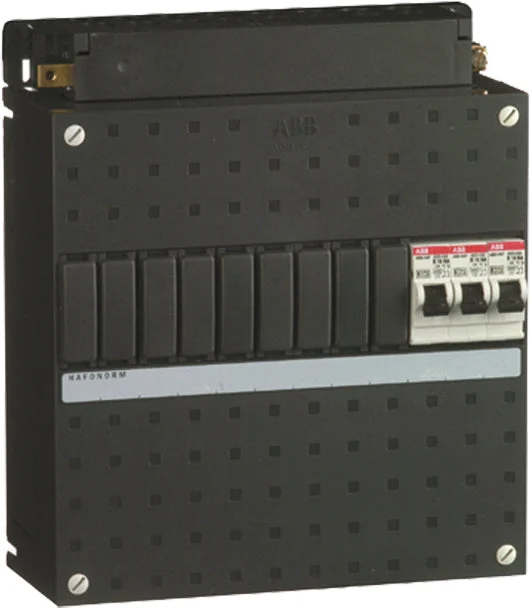

This Hafonorm 3 phase group box features 3 groups and is single-pole protected and two-pole switched. The group box is open at the bottom, at the top with insert anan number 175-05. The ABB Haf Hafonorm group box is available in various variants.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 3
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 3
Number of direct groups : 3
Number of light groups : 3
Number of groups behind earth leakage switch : 0
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 0
Number of earth leakage switches 300 mA : 0
Number of arc fault detection devices AFDD : 0
Protection main switch : No
Protection incoming RCD : No
Protection high integrity : No
Protection split load : Yes
Protection dual RCD : Yes
Number of outgoing ways : 0
Suitable for data : No
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
With meter : No
Material : Plastic
Degree of protection (IP) : IP20
Height (mm) : 280
Width (mm) : 220
Width in number of modular spacings : 12
Depth (mm) : 90
Built-in depth (mm) : 0 mm to 0 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
