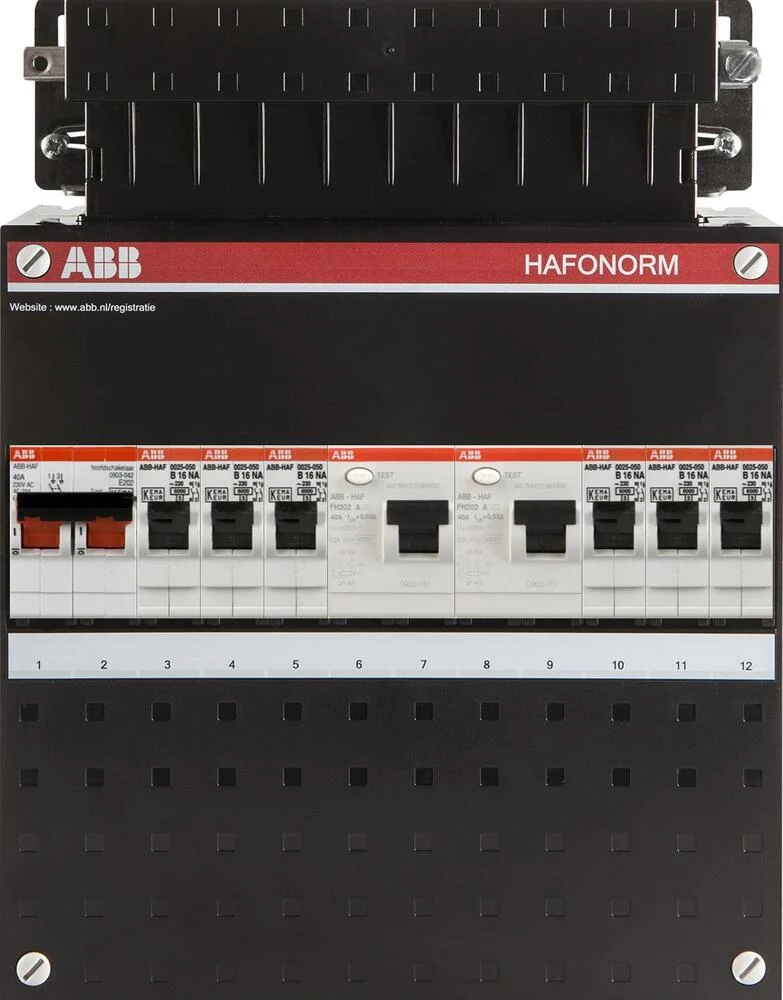

This Hafonorm HAD cabinet is open at the bottom and has interchangeable inserts on the side. The plug-in grounding rail has an outside connection. This Hafonorm 1 phase group box has 6 groups, 2 earth leakage switches and a main switch. The ABB Haf Hafonorm HAD group box is available in different variants.
Specifications
Mounting method : Surface mounted (plaster)
Number of phases : 1
Protection : Miniature- / earth leakage circuit breaker
Total number of groups : 6
Number of direct groups : 0
Number of light groups : 6
Number of groups behind earth leakage switch : 6
Number of earth leakage circuit breakers : 0
Number of earth leakage switches 30 mA : 2
Number of earth leakage switches 300 mA : 0
Number of poles main switch : 2
Main switch rated current (A) : 40
Cooker group : None
Cooker group suitable as power current group : No
With socket outlet : No
With bell transformer : No
Over voltage protection : No
Material : Plastic
Degree of protection (IP) : IP20
Height (mm) : 280
Width (mm) : 220
Width in number of modular spacings : 12
Depth (mm) : 90
Built-in depth (mm) : 0 mm to 45 mm
Extension possible : Yes
With transparent cover : No
Lockable : No
