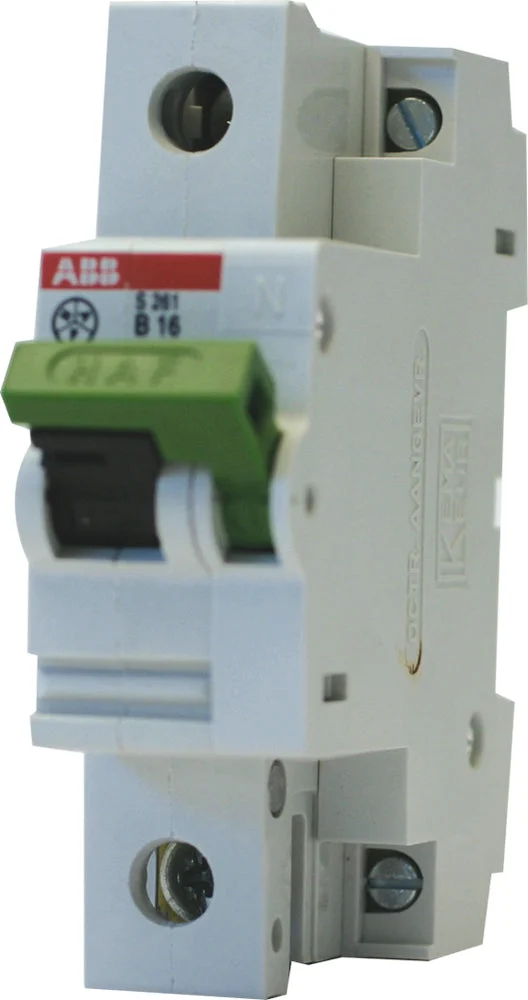

This Hafonorm hafomaat is suitable for DIN rail mounting. The circuit breaker is not suitable for a Bus Board. Furthermore, the toggle switch of the hafomaat is green. ABB Haf Hafonorm stove groups are available in various variants.
Specifications
Built-in depth (mm) : 68
Release characteristic : B
Number of poles (total) : 1
Number of protected poles : 1
Rated current (A) : 16
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 440
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 6
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 6
Frequency (Hz) : 50 Hz to 50 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 3
Pollution degree : 2
Additional equipment possible : No
Width in number of modular spacings : 1.5
Degree of protection (IP) : IP2X
Ambient temperature during operating (°C) : -25 °C to 55 °C
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 25 mm²
Connectable conductor cross section solid-core (mm²) : 0 mm² to 25 mm²
