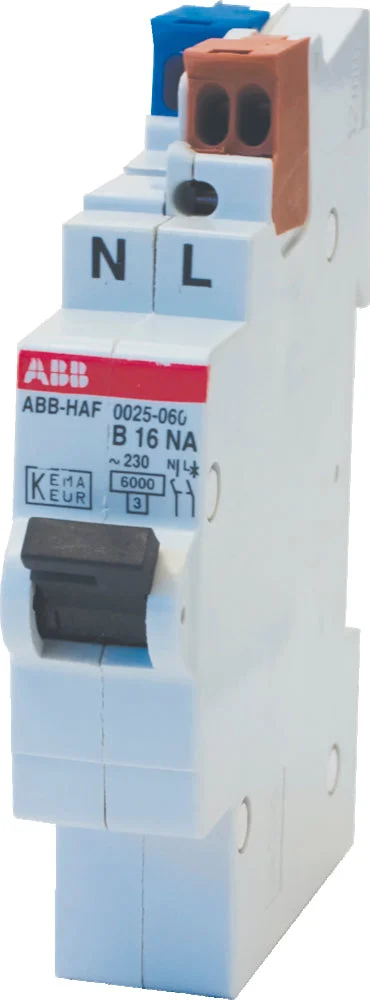

The plug-in contacts of the Hafonorm flexomaat make it possible to add additional groups to the installation very quickly. For even faster assembly, ABB Hafonorm circuit breakers are equipped with screwless contacts on the descending side. Using an assembly kit, it is possible to turn the flexomaat into a stove group or cooking group.
Specifications
Built-in depth (mm) : 68
Release characteristic : B
Number of poles (total) : 2
Number of protected poles : 1
Rated current (A) : 16
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 6
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 6
Frequency (Hz) : 50 Hz to 50 Hz
Current limiting class : 3
Flush-mounted installation : No
Concurrently switching neutral conductor : Yes
Over voltage category : 3
Pollution degree : 2
Additional equipment possible : No
Width in number of modular spacings : 1
Degree of protection (IP) : IP2X
Ambient temperature during operating (°C) : -25 °C to 55 °C
Connectable conductor cross section multi-wired (mm²) : 0 mm² to 10 mm²
Connectable conductor cross section solid-core (mm²) : 0 mm² to 16 mm²
