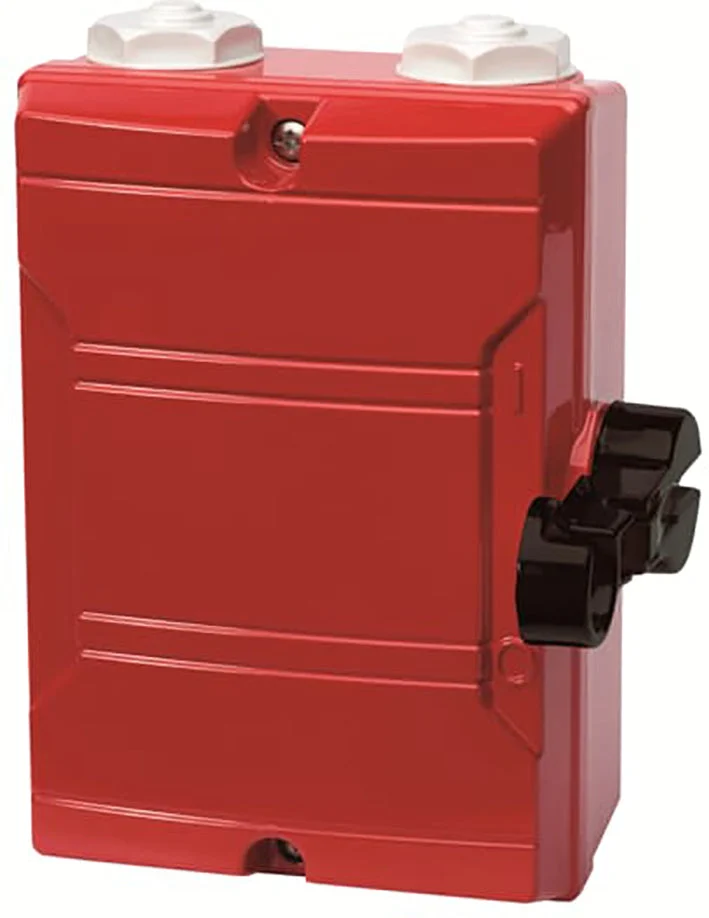

This 4-pole work switch from ABB Haf can be used as a switch-disconnector and work switch. In addition, this lockable switch with red housing has a cable entry of 2xM25. The rated continuous current is 25A. Furthermore, the load breaker has a rated capacity of 15kW at AC23 and 15kW at AC-3. This switch is controlled by a tumbler on the side. The operating voltage (measurement voltage) is 400-690V. In addition, the switch has a front side protection rating of IP65 and can be connected horizontally using a screw terminal.
Specifications
Version as main switch : No
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 25
Rated permanent current at AC-23, 400 V (A) : 16
Rated permanent current at AC-21, 400 V (A) : 25
Rated operation power at AC-3, 400 V (kW) : 15
Rated operation power at AC-23, 400 V (kW) : 15
Switching power at 400 V (kW) : 7.5
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Rocker lever
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP65
Degree of protection (NEMA) : Other
