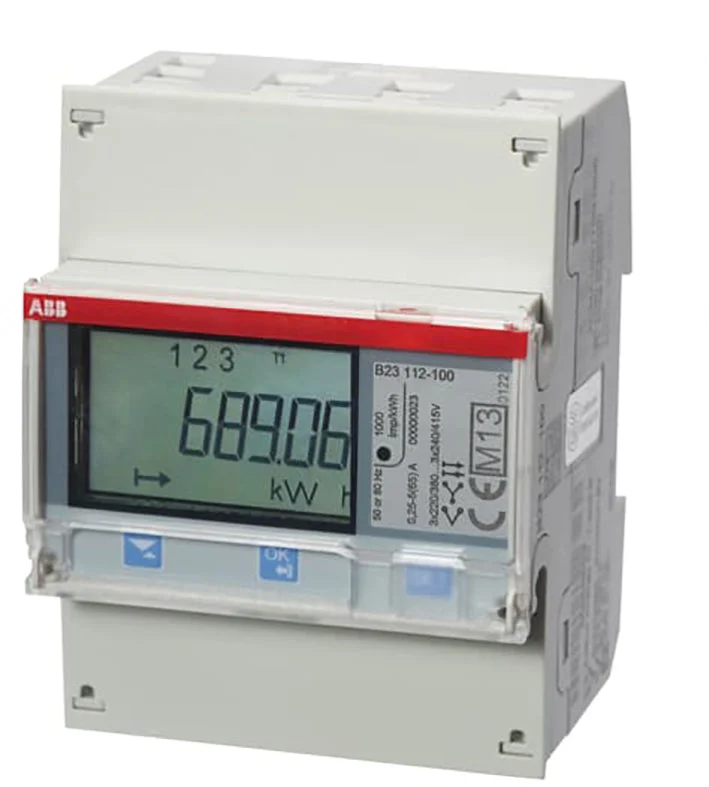

Abb electricity meter direct measurement, pole type quad conductor, meter type electronic, indication type digital, nominal voltage (Un) L-L 230 – 400V, nominal voltage (Un) N-L 320 – 400V, nominal current (In) 5A, max current (Imax) 65A, frequency 50 – 60Hz, pulse rate 1 – 9999999Imp/kWh.
Specifications
Type of meter : Electronic
Nominal current (In) (A) : 5
Max. current (Imax) (A) : 65
Nominal voltage (Un) N-L (V) : 230 V to 230 V
Nominal voltage (Un) L-L (V) : 400 V to 400 V
Frequency (Hz) : 50 Hz to 60 Hz
Accuracy class : B
Pole type : Four conductor
Model : Direct measurement
Energy type : Effective power
Suitable for : Purchase
Tariff type : One-tariff
Tariff control : Internal
Measurement type load profile : No
Escapement mechanism : Yes
Calibrated : Yes
Approval : Measuring Instruments Directive
Pulse output : Electrical
Pulse type : S0
Pulse rate (Imp/kWh (kvarh)) : 1 Imp/kWh (kvarh) to 999999 Imp/kWh (kvarh)
Type of indication : Digital
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Width (mm) : 70
Depth (mm) : 65
Height (mm) : 26.5
Type of interface : RS-485
EEC40 signature : No
With lock code : No
Number of positions total (counter) : 7
Degree of protection (IP) : IP20
