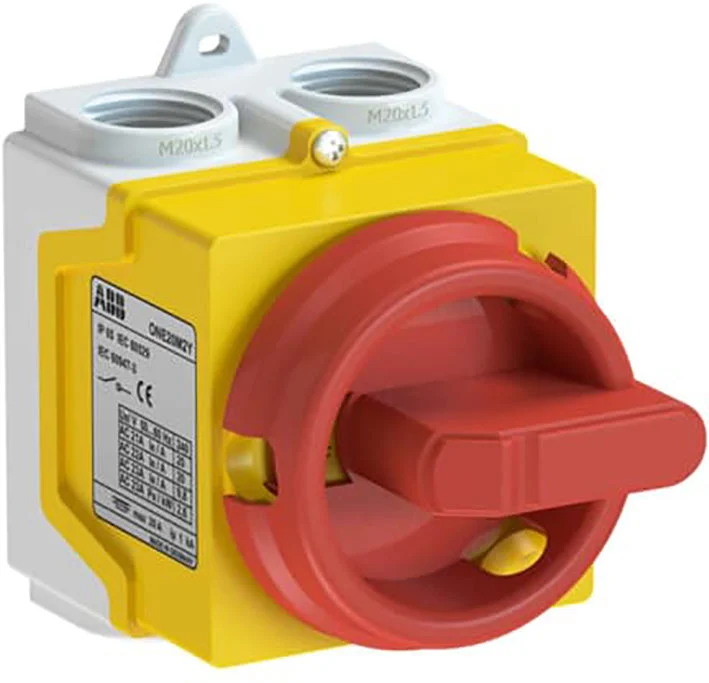

The plastic enclosed switch disconnector, is well suited for commersial and residential use. There are 3 color alternatives available, red/yellow, dark grey, and white. Typical applications could be fans, pumps, kitchen appliancies etc. The product withstand water and rain, acc. To class IP67, and is well suited for indoor and outdoor us. The plastic is UV protected. Two cable glands are included in the delivery. The terminals are easily available, thanks to the enclosure design and the removable switch. N and PE terminal included.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 415
Rated operating voltage (V) : 400 V to 440 V
Rated permanent current Iu (A) : 20
Rated permanent current at AC-23, 400 V (A) : 15.2
Rated permanent current at AC-21, 400 V (A) : 20
Rated operation power at AC-3, 400 V (kW) : 5.5
Rated operation power at AC-23, 400 V (kW) : 7.5
Switching power at 400 V (kW) : 7.5
Number of poles : 3
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Complete device in housing
Suitable for floor mounting : Yes
Suitable for front mounting 4-hole : No
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Red
Type of control element : Turn button
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP67
Degree of protection (NEMA) : Other
