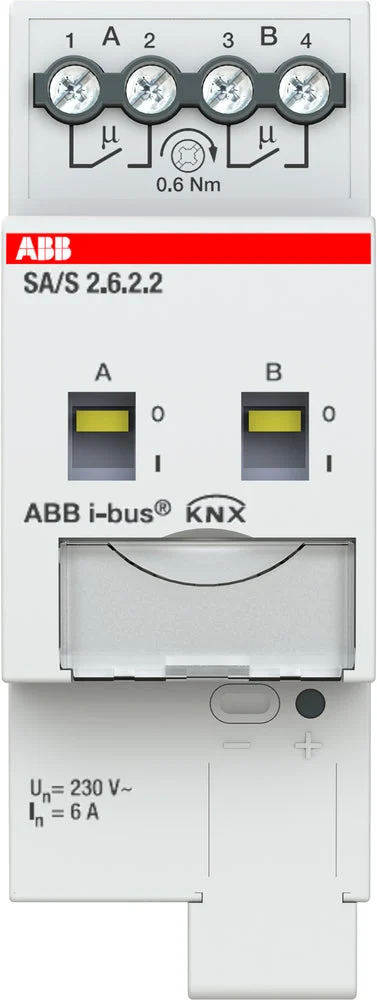

ABB Busch-Jaeger Switch Actuator Bus System – 2CDG110253R0011

The switch actuator uses potential free contacts to switch 2 independent electrical loads via the ABB i-bus® KNX. The device features a manual operation and displaying of the switching state of the outputs. The 6 A device is especially suited to switch resistive, inductive or capacitive loads. The device is powered by KNX and requires no additional power supply.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 2
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 1380
Output power (W) : 1380
Suitable for C-load : No
Max. number of switching contacts : 2
Max. switching current (A) : 6
Rated current (A) : 6
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : No
Bus module detachable : No
Min. depth of built-in installation box (mm) : 64.5
Modular expandability : No
Degree of protection (IP) : IP20
