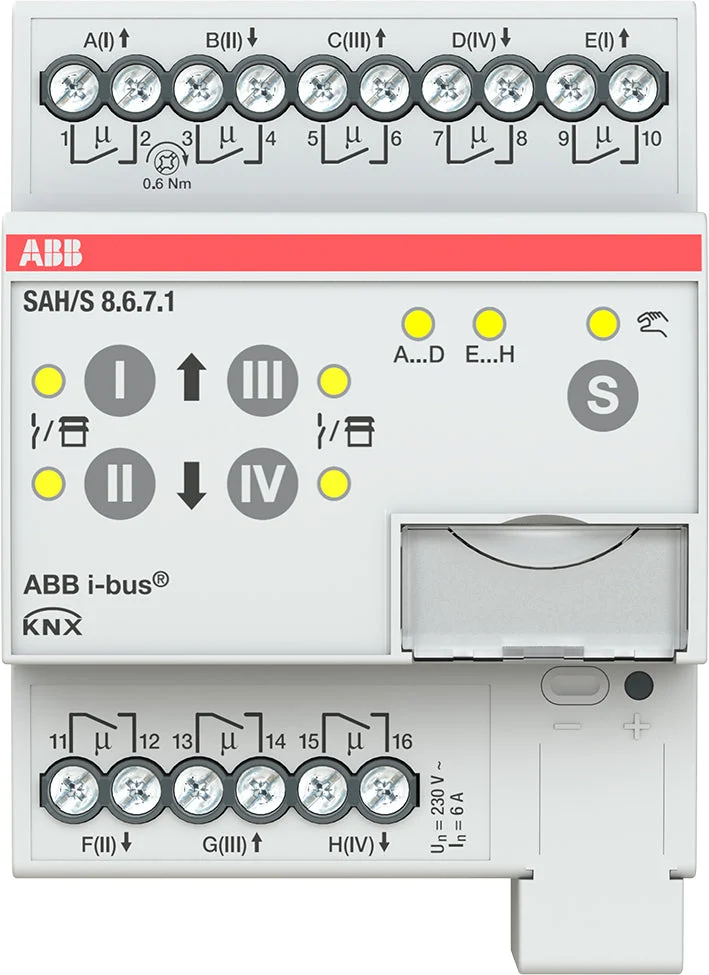

ABB Busch-Jaeger Switch Actuator Bus System – 2CDG110244R0011

The compact 6 A combi switch actuator has 8 independent switching relays. The outputs can be used individually via ABB i-bus® KNX for switching electrical loads or in pairs for controlling 230 V AC roller shutter or blind drives (no electromechanically interlocking). The device features a manual operation, which can also be disabled. Via the manual operation the outputs can be operated manually and the switching or driving status is displayed. The device is powered by KNX and requires no additional power supply.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
Local operation/hand operation : Yes
With LED indication : Yes
Number of digital inputs : 0
Max. switching power (W) : 1200
Output power (W) : 1200
Suitable for C-load : No
Max. number of switching contacts : 8
Max. switching current (A) : 6
Rated current (A) : 6
Rated operating voltage (V) : 110 V to 230 V
Different phases connectable : Yes
With bus connection : No
Bus module detachable : No
Min. depth of built-in installation box (mm) : 64.5
Modular expandability : No
Degree of protection (IP) : IP20
