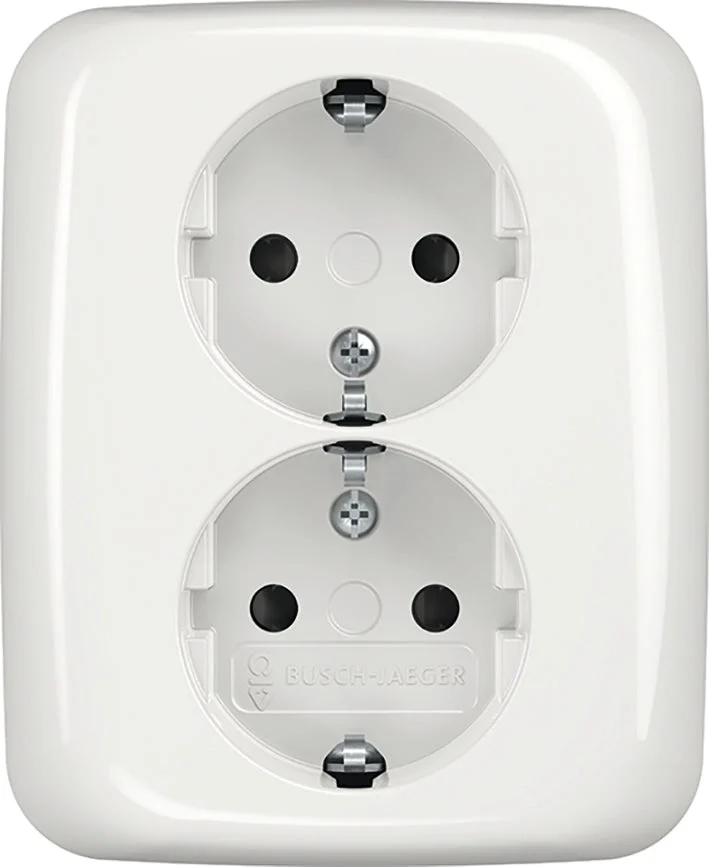

ABB Busch-Jaeger Reflex SI Wall Outlet (WCD Switchgear) – 2TKA00003902

Complete cover. With screwless terminals. DP (2 P + E) Suitable for 1gang flush-mounted boxes. Without claws.

Specifications

Model : Protective contact (SCHUKO)
Protective contact : Yes
Protective earth pin round : No
Number of active pins (round) : 4
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Number of units : 2
Number of modules (module system) : 0
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
With hinged lid : No
With enhanced contact protection : Yes
Label space/information surface : No
Color : White
RAL-number (similar) : 9010
Metallic color : No
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : No
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : Yes
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width of device (mm) : 102
Height of device (mm) : 82.1
Depth of device (mm) : 40.3
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 40
Compatible with Amazon Alexa : No
IFTTT support available : No
