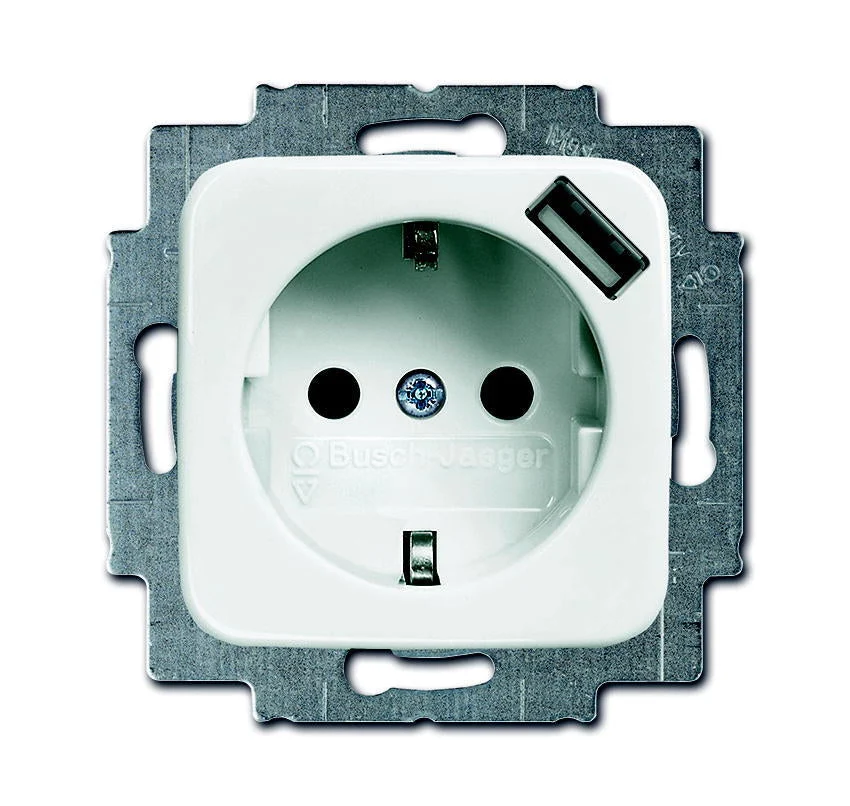

With this Busch-Jaeger socket outlet, you have a power outlet and USB connection for charging and powering mobile peripherals via a USB cable. Appropriate smartphones, tablets, cameras or MP3 players can be charged anywhere in the house in a fixed location. Searching for a suitable charger is thus a thing of the past. From now on, charge your equipment at a fixed location. Thus, charging becomes even more convenient with this Busch-Jaeger socket outlet. The combination of the socket outlet with rim earthing and the modern USB power supply also offers a uniform design.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Number of active pins (round) : 2
With built-in USB power supply : Yes
Type of USB power supply : A
Number of units : 1
Number of modules (module system) : 1
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
With enhanced contact protection : Yes
Color : White
RAL-number (similar) : 9010
Insulated mounting : Yes
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
With loop through function : Yes
Nominal current (A) : 16
Nominal voltage (V) : 230
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 53
Min. depth of built-in installation box (mm) : 40
