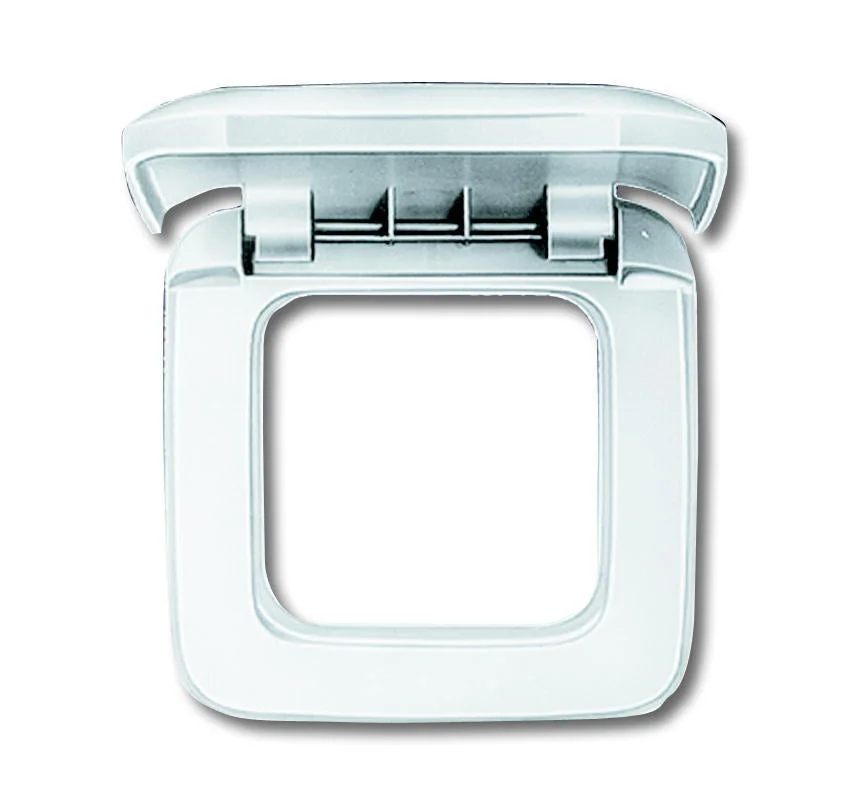

This 1-gang cover frame from the Reflex SI series from Busch-Jaeger is finished in an alpin white color. In addition, the cover frame features a hinged cover and sealing ring. The hinged lid completely and securely covers an underlying contact. The cover frame with hinged cover can only be combined with built-in appliances with flat covers.
Specifications
Number of units : 1
Mounting direction : Horizontal
Number of units horizontal : 1
Number of units vertical : 1
Number of modules horizontal (module system) : 1
Number of modules vertical (module system) : 1
Number of switch inserts : 1
With mounting grid : No
Flush-mounted installation : Yes
Suitable for floor box : No
Suitable for wall duct : No
Suitable for built-in installation : No
Label space/information surface : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9010
Transparent : No
With hinged lid : No
Degree of protection (IP) : IP20
Impact strength : IK03
Type of fastening : Clamp mounting
Width (mm) : 81
Height (mm) : 81
Depth (mm) : 19
Built-in width (mm) : 54
Built-in height (mm) : 54
Diameter bore hole (opening) (mm) : 54
