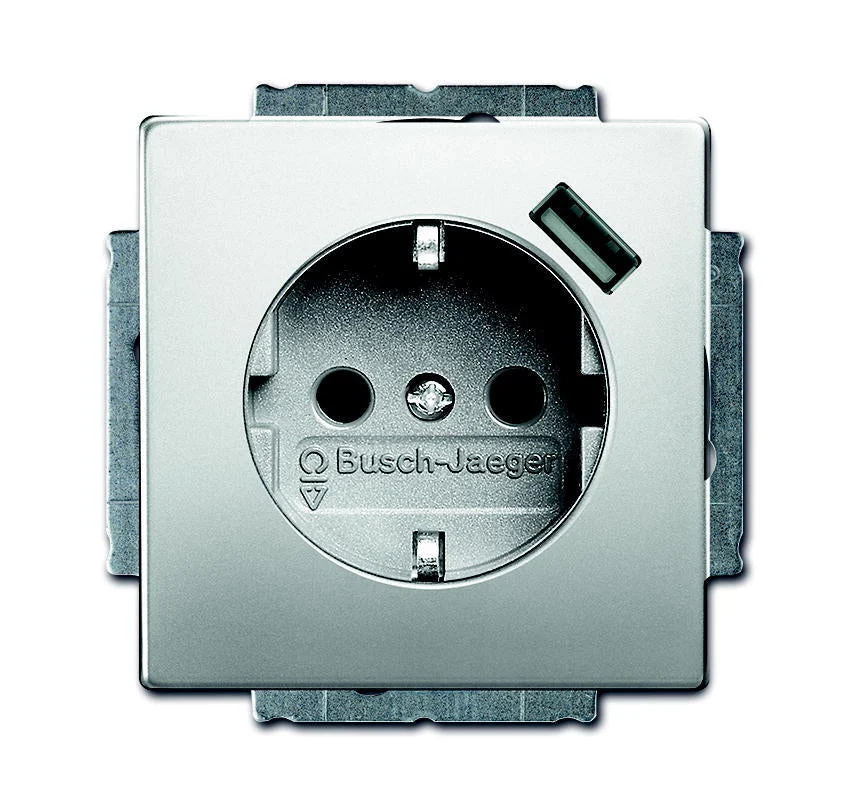

ABB Busch-Jaeger Pure Stainless Steel Wall Outlet (WCD Switchgear) – 2CKA002011A6166

With the Busch-Jaeger USB Charger, you have a socket for charging and powering mobile peripherals via a USB cable. This allows appropriate smartphones, tablets, cameras or MP3 players to be charged anywhere in the house in a fixed location. Searching for USB charging stations with their own power supply and electrical cables is thus a thing of the past! So charging becomes even more comfortable. The combination of the grounded socket and the modern USB power supply also offers a uniform design.

Specifications

Model : Protective contact (SCHUKO)
Protective contact : Yes
Number of active pins (round) : 2
With built-in USB power supply : Yes
Type of USB power supply : A
Number of units : 1
Number of modules (module system) : 1
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
With enhanced contact protection : Yes
Color : Stainless steel
Insulated mounting : Yes
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with claw and screw
Material : Plastic
Material quality : Stainless steel
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Matt
With loop through function : Yes
Nominal current (A) : 16
Nominal voltage (V) : 230
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width of device (mm) : 71
Height of device (mm) : 71
Depth of device (mm) : 53
Min. depth of built-in installation box (mm) : 40
