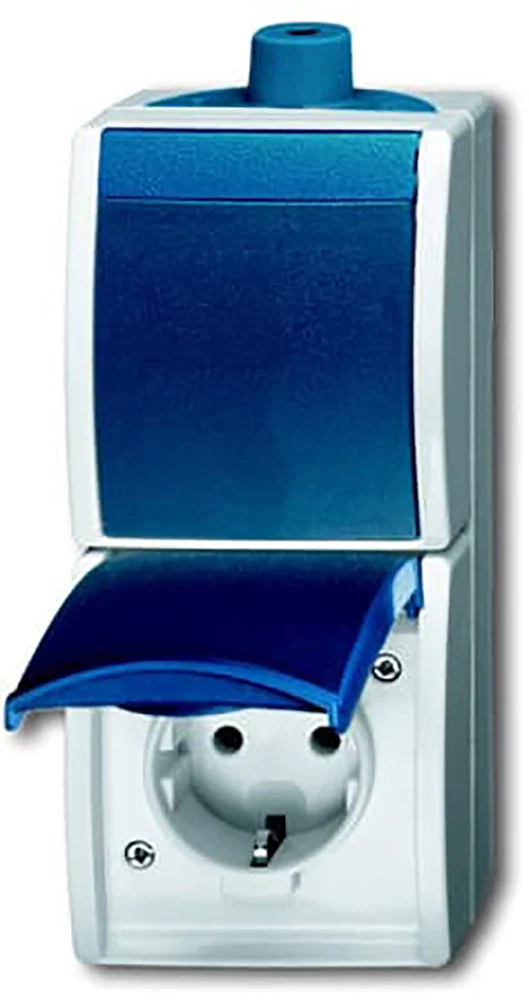

ABB Busch-Jaeger Ocean IP44 Switch Socket Combination – 2CKA001684A0319

The Busch-Jaeger Ocean IP44 is a combination switch/socket made from plastic in a blue hue. It features a wall socket with protective contact (type F), and a switch in a changeover design. It offers a degree of protection rated IP44, featuring two active (round) contacts. The operation mode is rocker/push-button. This halogen-free unit comes in a gray/blue-green variant. This combination switch-socket device from the Ocean IP44 series is suitable for vertical installation, and boasts a blue-green color.

Ocean IP44 is the splash-proof built-in range from ABB Busch-Jaeger, a leading company in the field of switch programmes and innovative solutions in this area. The Ocean IP44 series offers many combination possibilities, impact-resistant material, robust construction, and modern design. Standard fastening sizes and the large connection space ensure a simple and fast assembly. The Busch-Jaeger Ocean built-in programme is made of sturdy thermoplastic material. Additionally, the switching material is silicone-free and halogen-free. Thus, besides being user-friendly, Ocean is also sustainable and environmentally-friendly. Busch-Jaeger Ocean is now also available in alpine white, making the system even more versatile than before.

Specifications

Type of switch : Two-way switch
Number of socket outlets : 1
Method of operation : Rocker/button
Mounting direction : Vertical
Type of fastening : Mounting with screw
With lighting : No
Mounting method : Surface mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : Blue
RAL-number (similar) : 7035
Transparent : No
Suitable for degree of protection (IP) : IP44
Nominal voltage (V) : 250
Nominal current socket outlet (A) : 16
Rated current (A) : 10
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Number of active pins (round) : 2
Number of active pins (flat) : 0
Width of device (mm) : 74
Height of device (mm) : 167
Depth of device (mm) : 55
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
