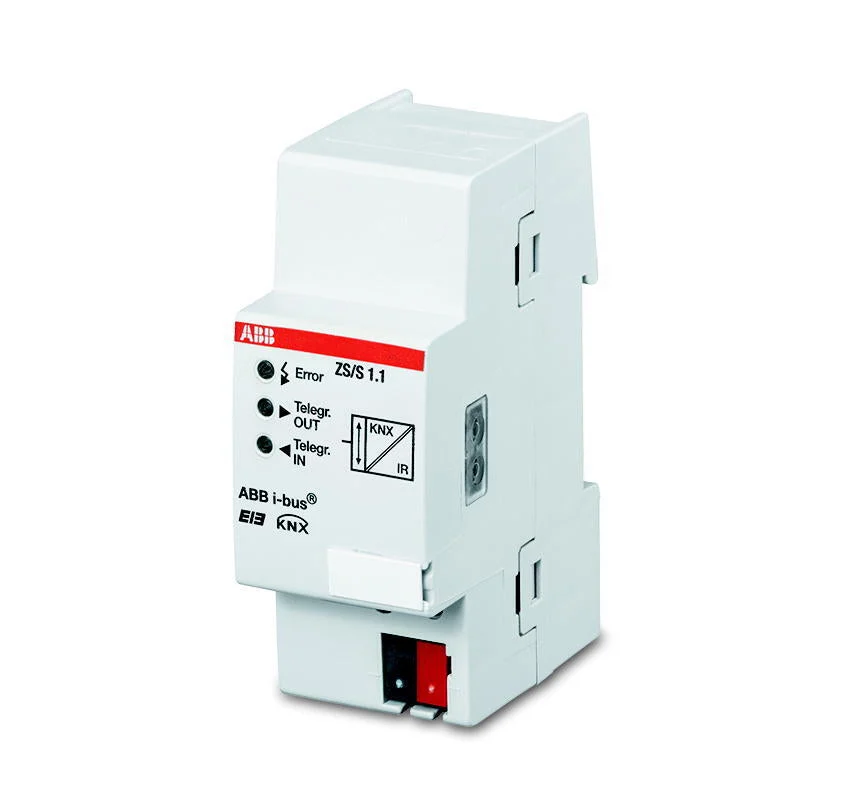

ABB Busch-Jaeger I-Bus KNX Interface Bus System – 2CDG110083R0011

The Meter Interface Module receives data and values from energy meters and sends them via KNX. These data can be used e.g. for visualisation, energy optimizing, billing and monitoring purposes. The device is equipped with an infrared interface to connect ABB energy meters such as A-Series, B-Series, DELTA and ODIN.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Radio frequent bidirectional : No
Model : Other
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 2
Material : Plastic
Material quality : Thermoplastic
Surface protection : Untreated
Surface finishing : Matt
Color : Grey
RAL-number (similar) : 7010
Transparent : No
Max. data transmission rate (Bd) : 10
With bus connection : No
With label area : No
With LED indication : No
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 64.5
