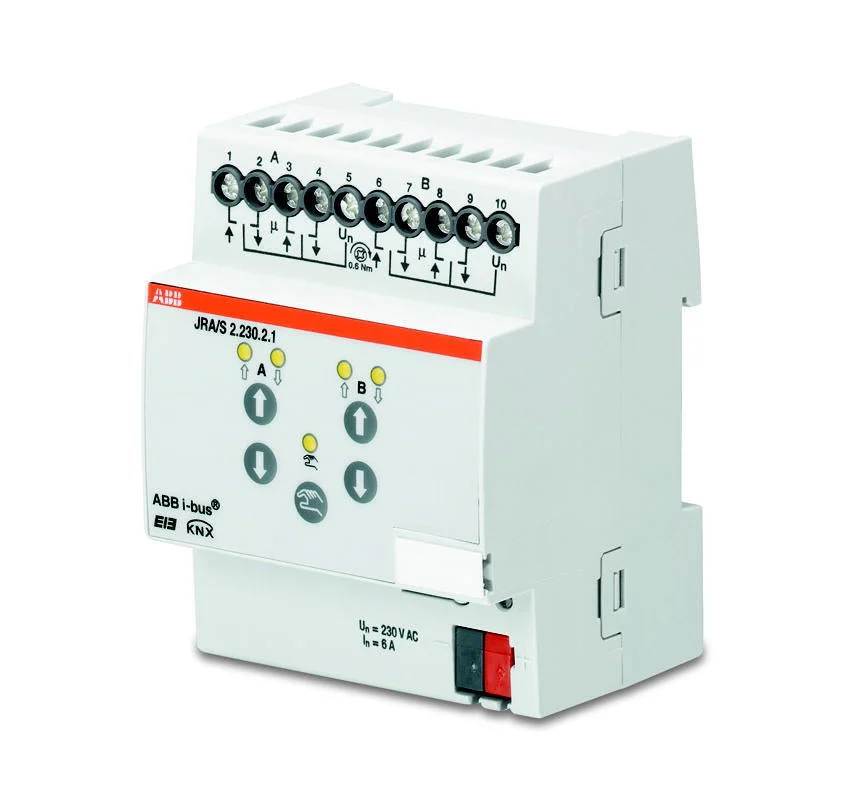

ABB Busch-Jaeger I-Bus KNX Blinds Actuator Bus System – 2CDG110120R0011

For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. To protect the drives, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g. during commissioning. The current status of the output is displayed via LEDs.

Specifications

Bus system KNX : Yes
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Local operation/hand operation : Yes
With LED indication : Yes
Switching current (resistive) (A) : 6
Max. number of venetian-blind outputs : 2
With switch function : Yes
Type of current : AC
Degree of protection (IP) : IP20
