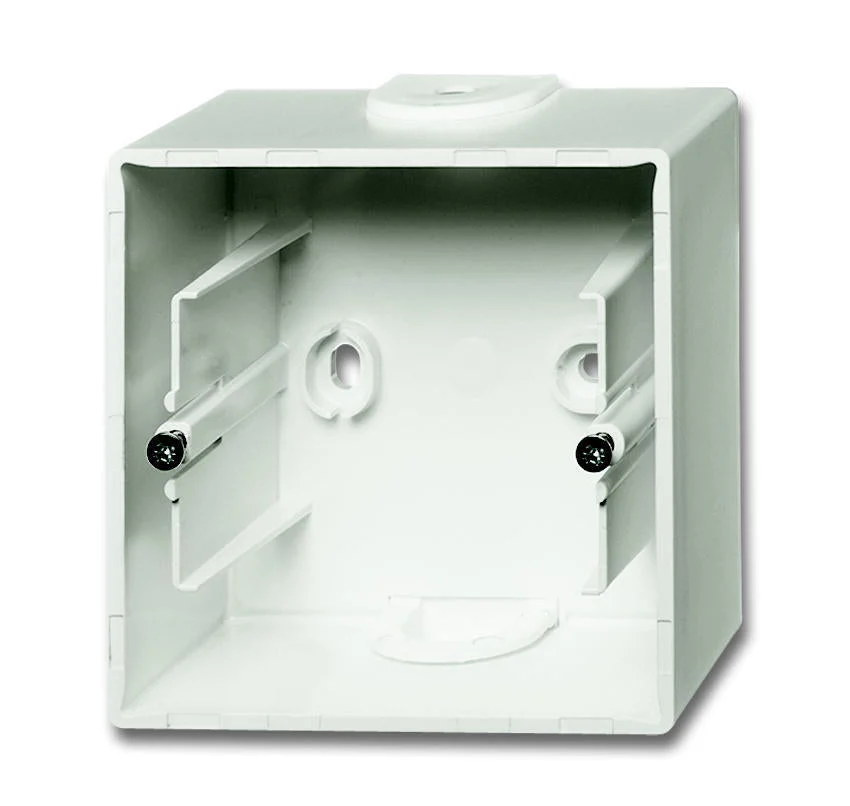

This surface-mounted box from Busch-Jaeger’s Future Linear series allows the Future Linear flush-mounted switchgear to be mounted as a surface-mounted unit. The 1-gang surface mount box is suitable for basic elements and central plates with cover frame.
Specifications
Assembly arrangement : Surface mounted housing
Suitable for modular domestic switching devices : Yes
Number of modules (module system) : 0
Number of units : 1
Mounting direction : Horizontal and vertical
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Lacquered
Surface finishing : Matt
Color : White
RAL-number (similar) : 9016
Transparent : No
With cover frame : No
Cross-trunking mounting : No
With duct entry : Yes
With cable entry : Yes
With screw gland entry : No
Shock resistant : No
Degree of protection (IP) : IP20
Width of device (mm) : 81
Height of device (mm) : 42
Depth of device (mm) : 81
