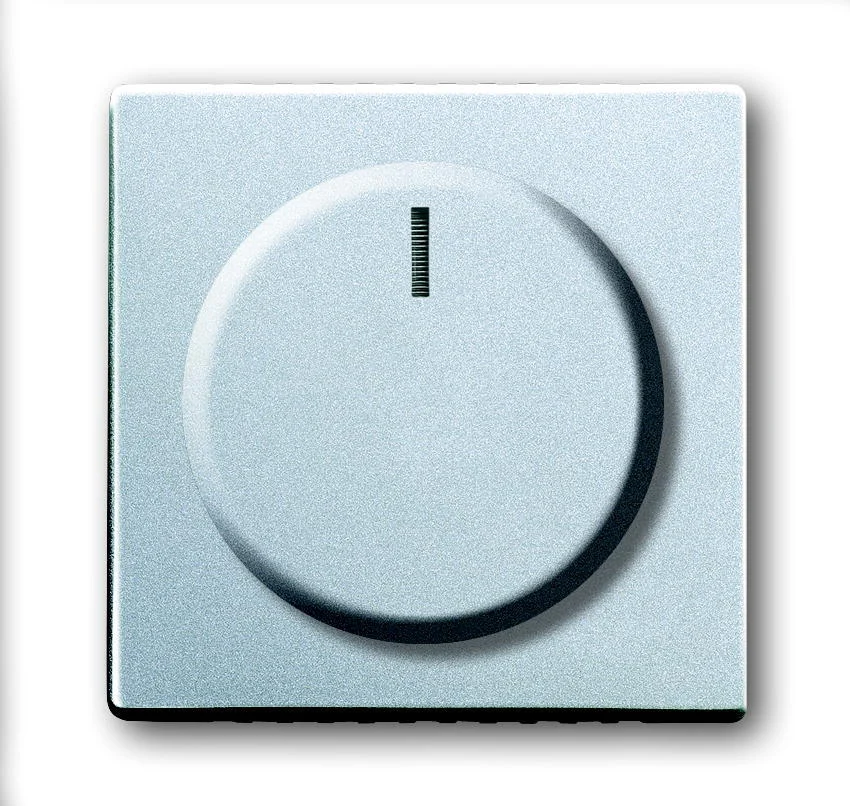

This dimmer knob from the Future Linear series by Busch-Jaeger is suitable for covering a Busch-Dimmer. With transparent light ring. With mounting nut and glow lamp. Furthermore, the dimmer knob has an aluzil silver color. Suitable for dimmer base elements 2112 U-101/2116(/11) U/ 2117(/11) U/2247 U/2250 U/6513 U-102/6517 U-10x/6519 U/6520 U/6523 U(10x) /6591 U-10x and 6592 U.
Specifications
Model : Turn button
Imprint/indication : None
Scannable symbol/barrier free : No
Utilization : Dimmer
Suitable for touch sensor connector for bus system : No
Type of fastening : Clamping/screw mounting
Monitoring window/light outlet : Yes
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Lacquered
Surface finishing : Matt
Anti-bacterial treatment : No
Color : Aluminum
RAL-number (similar) : 9006
With label area : No
With exchangeable lens/symbol : No
Suitable for degree of protection (IP) : IP20
Impact strength : IK03
Width (mm) : 63
Height (mm) : 63
Depth (mm) : 7
