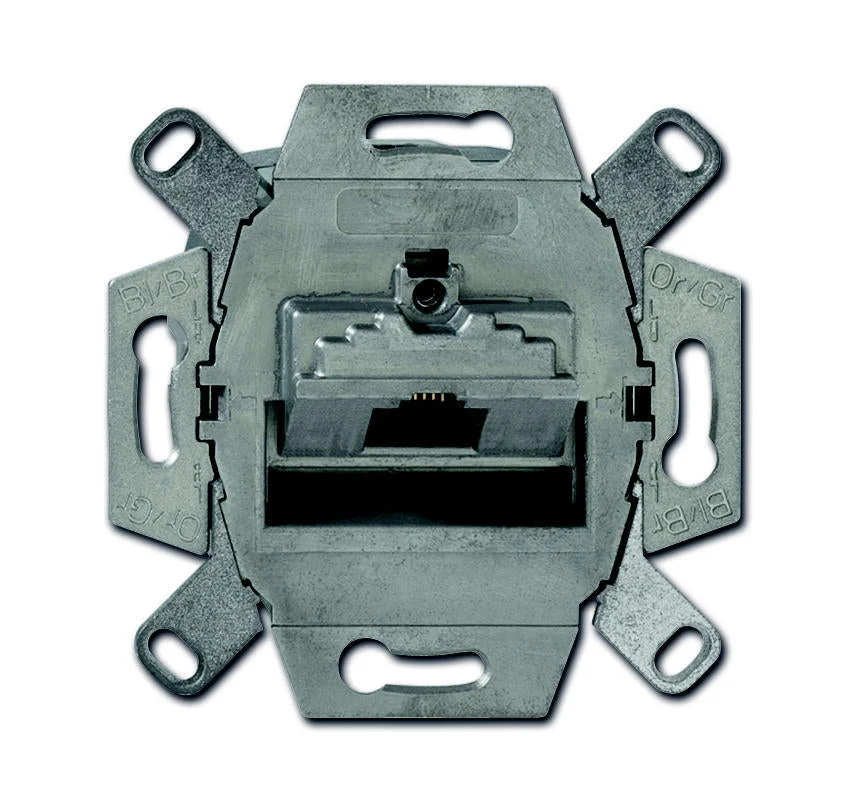

With down-leading outlet and LSA self-cutting clamps. RJ-45 terminals for networks according to Cat 6A, Class EA (10 Gbits/s / 500MHz). Equates to cat. 6a, Class EA according to ISO/IEC 11801:2011-06. Terminal marking A and B according to TIA/EIA-568-B.2. Typ according to EN 60 603-7-51:2011-01. Shielding according to DIN EN 55022, Class B. Up to 500 MHz on all pairs of wires. Suitable for 10-Gigabit Ethernet. Suitable for PoE+ according to IEEE 802.3at,>- 1.000 contact durability. Flex cable entries from all sides without buckles.
Specifications
Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Type of fastening : Screwing
Assembly arrangement : Basic element
Type of connector : RJ45 8(8)
With buses/couplings : Yes
Suitable for number of connectors : 1
Category : 6A (IEC)
Color : Grey
RAL-number : 9006
Connection type : LSA
Shielded buses : Yes
Shielded housing : Yes
Separate earthing connection : Yes
With label space : No
Design suitable : Yes
Separate strain relief : Yes
Mounting method shielding connection : Screw
Outlet direction : Inclined
With dust cover : No
With terminal resistor : No
Degree of protection (IP) : IP20
Mechanical coding : No
Color coding : No
Width of device (mm) : 71
Height of device (mm) : 32
Depth of device (mm) : 71
