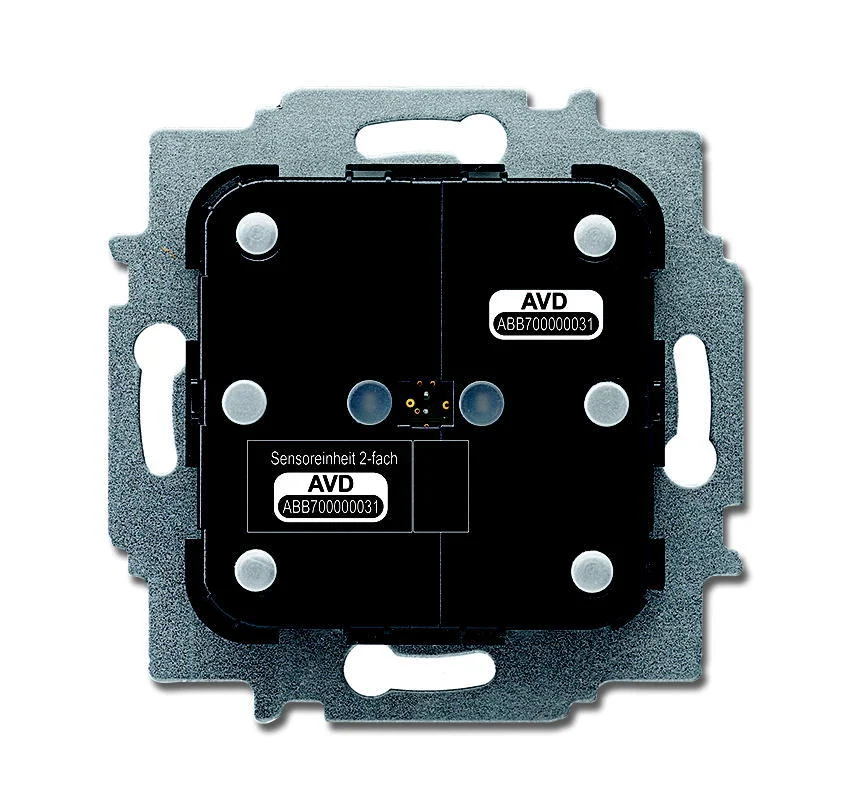

This sensor unit from the Busch-free@home series from ABB Busch-Jaeger is suitable for transmitting switching, impulse, dimming and blind commands to a Busch-free@home actuator. The 2-fold sensor unit has key contacts both at the top and bottom of the control element. In addition, the sensor unit has green LEDs as an orientation light and status indication. Furthermore, the sensor unit can be finished with the following 2-fold control rockers: 6230-2x-xxx, 6231-2x-xxx, 6232-2x-xxx, 6233-2x-xxx en 6234-2x-xxx. Bus connection is done via the included bus terminal.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : free@home
Radio frequent bidirectional : No
Mounting method : Flush mounted (plaster)
With anti-theft/dismantling protection : No
With bus connection : Yes
Number of actuation points : 4
Number of buttons : 2
With LED indication : Yes
With label area : No
With display : No
Material : Plastic
Material quality : Thermoplastic
Surface protection : Untreated
RAL-number (similar) : 9007
Transparent : No
With room temperature controller : No
With IR sensor : No
Degree of protection (IP) : IP20
Min. depth of built-in installation box (mm) : 9
