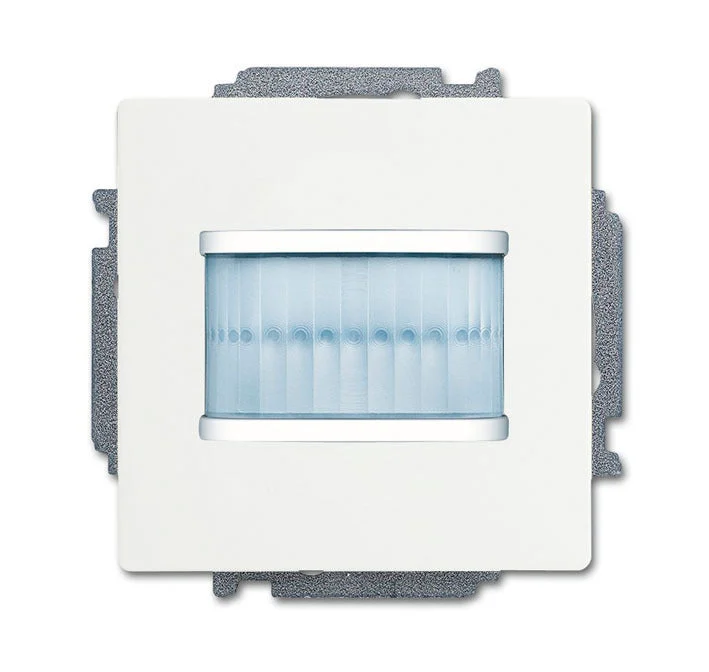

This motion detector from the Busch-free@home series from Busch-Jaeger is suitable for automatic switching of Busch-free@home actuators depending on motion and brightness. The motion switch thus switches connected actuators automatically when there is a movement in the detection area and when it is dark enough. The motion switch features a select lens for detection with animal zone. The detection range is 6 meters frontally and 3 meters laterally. In addition, the detection field is 180° and the light value setting is 1 – 500 lux.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : free@home
Radio frequent bidirectional : No
Model : Movement sensor
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Surface protection : Lacquered
Surface finishing : Matt
Color : White
RAL-number (similar) : 9016
Transparent : No
With bus connection : Yes
Substation input : No
Creep-under protection : No
Operation mode switch : No
Animal zone : Yes
Staircase monitoring : No
Response value luminosity adjustable : Yes
Teach-function for response value luminosity : No
Switch-off delay self-learning : No
Optimum mounting height (m) : 1.2
Max. transmission range sideways (m) : 3
Max. transmission range frontally (m) : 6
Diameter detection range on floor (m) : 3
Detection angle vertical (°) : 10 ° to 10 °
Detection angle horizontal (°) : 10 ° to 180 °
Number of digital inputs : 0
Number of channels : 1
Min. switch-on time (s) : 30
Max. duty cycle (min) : 1092
Min. depth of built-in installation box (mm) : 9
