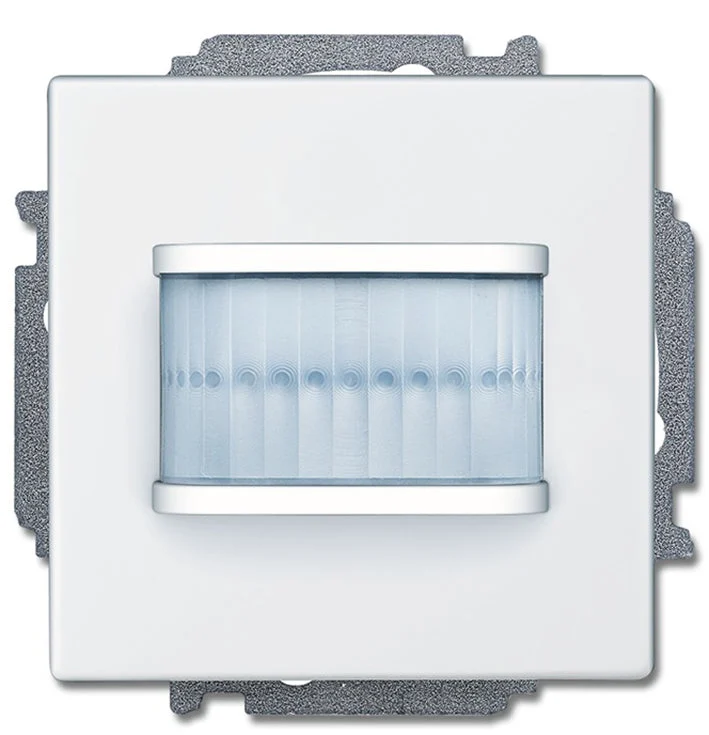

This motion detector from the Busch-free@home series from Busch-Jaeger is suitable for automatic switching of Busch-free@home actuators depending on motion and brightness. The motion switch thus switches connected actuators automatically when there is a movement in the detection area and when it is dark enough. Also, the motion switch/switch actuator is suitable for switching 127V/230V consumers. This is because the motion detector features an integrated switching actuator. In addition, the motion switch/switch actuator has a select lens for detection with animal zone.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : free@home
Radio frequent bidirectional : No
Model : Movement sensor
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
With bus connection : Yes
Substation input : No
Creep-under protection : No
Operation mode switch : No
Animal zone : Yes
Staircase monitoring : No
Response value luminosity adjustable : Yes
Teach-function for response value luminosity : No
Switch-off delay self-learning : No
Optimum mounting height (m) : 1.2
Max. transmission range sideways (m) : 3
Max. transmission range frontally (m) : 6
Diameter detection range on floor (m) : 6
Detection angle vertical (°) : 10 ° to 10 °
Detection angle horizontal (°) : 10 ° to 180 °
Number of digital inputs : 0
Number of channels : 1
Switching power (W) : 2300
Min. switch-on time (s) : 30
Max. duty cycle (min) : 30
Min. depth of built-in installation box (mm) : 32
